Wireless NVR Kit

Key Features...

• Improve your home or office security with the wireless NVR surveillance system
• 4 cameras offer 720p video recording with IR Cut brings reliable imaging night or day
• Motion detection and remote alarm notifications with e-mail snapshot and video recording
• Supports both Android and iOS platforms, super easy to set up

Protect your home, office or other property with an all-comprising comprehensive security system coming with 4 HD cameras ready for use indoors or out, 15-meter night vision, motion detection, iOS and Android system support and more.

Wireless NVR Kit with 4HD Cameras

This compact and ready-to-use wireless NVR kit is everything you need to keep an eye on your property while you are away. The kit comes with 4 HD cameras, 4- channel video output and comes with everything you need for a quick hassle-free installation. With no cables required, you will have complete freedom when placing the cameras letting you cover any areas that need monitoring. With 720P resolution, each camera will give you a clear view of the monitored area and, thanks to H.264 compression, you will have more storage space without compromising video quality.

With motion detection support, you will be able to select 4 detection areas and be instantly alerted should any suspicious activity be detected. Once the motion detection sensor is triggered, you will receive an email with a snapshot of the intruder.

The cameras are IP66 waterproof rated and can be freely used outdoors. With 15-meter night vision, you will get a clear picture of the outdoors even after dark. The security system is compatible with both Android and iOS platforms and all you need to do is download the dedicated app - Eseecloud. The system supports 4 online users at the same time.

With ONVIF 2.0 compatibility, this wireless NVR kit can be an extension to your existing security system or work independently.

The Wireless NVR Kit comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale wireless NVR kits and security cameras.

Manufacturer Specifications

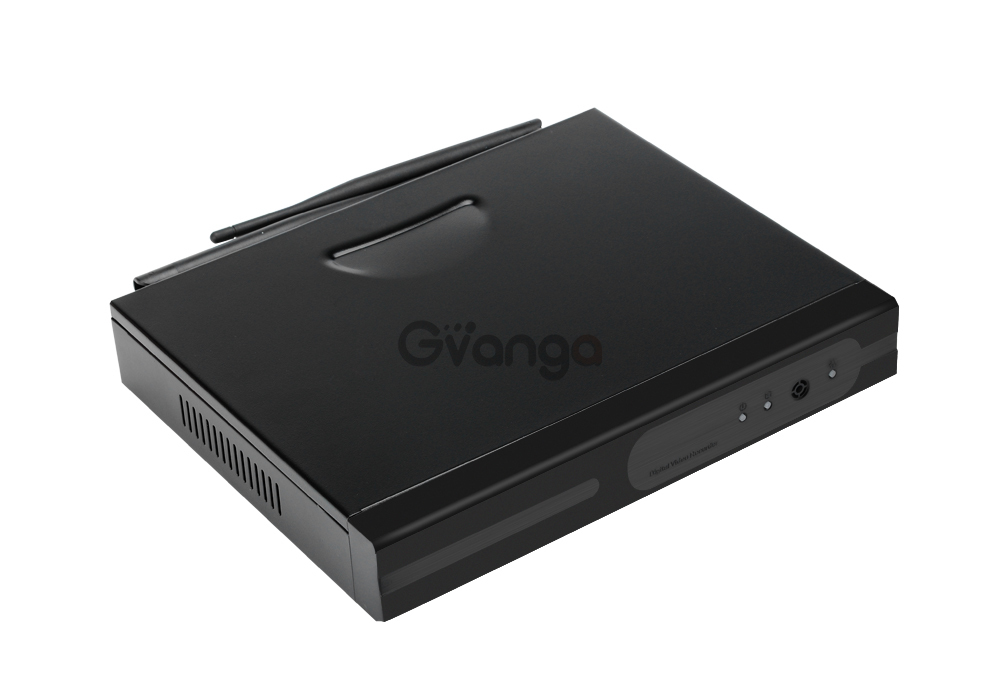

NVR

• Operating System: Embedded Linux
• Output Resolution: 1024x768, 1336x768, 1440x900, 1920x1080
• AV CODEC Video Resolution: DI, 720P, 960P
• Video/Audio Compression: H.264
• Record Mode: Manual, Timing, Motion Detection
• Frame by Frame Playback Mode: Forward and Back
• Specification Synch-playback: 4CH
• Frame By Frame Playback Mode: Forward and back, Play correctly
• Pattern Playback (Channel): 4.0
• IR Cut
• Motion Detection
• Night Vision
• Alarm: Sensor Triggered, Video Loss, HDD Error
• Connection Mode: Wireless Connection Mode, Wireless and Wired Connection Mode
• APP: Eseecloud
• Application Supports: Local and Remote Playback, Recording locally, Browse Video, Remote Setup
• Power: DC 12V 2A
• Woking Temperature: -10 to 55 Degrees Celsius
• Working Humidity: 10% to 90% RH

Connectivity

• Ethernet: RJ-45, WIFI 802.11b/g/n
• Network Protocol: UPnP (Play and plug), SMTP (Email service), PPPoE (Dial-up), DHCP (Automatically Obtain an IP address)
• Mobile Phone Browsing: Android 4.0 and above, iOS 6.0  and above

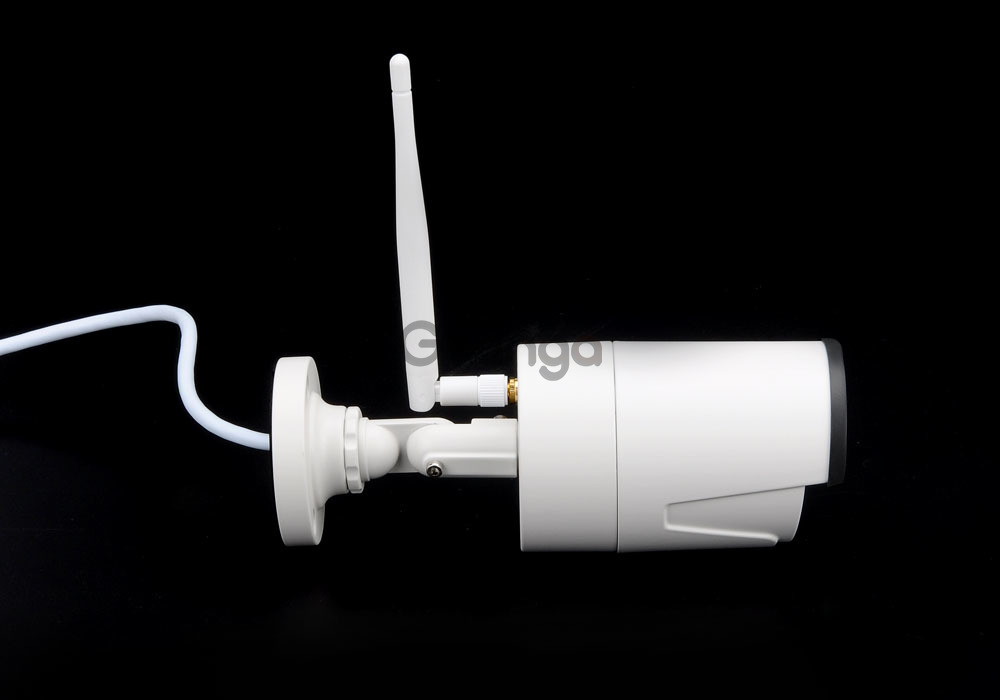

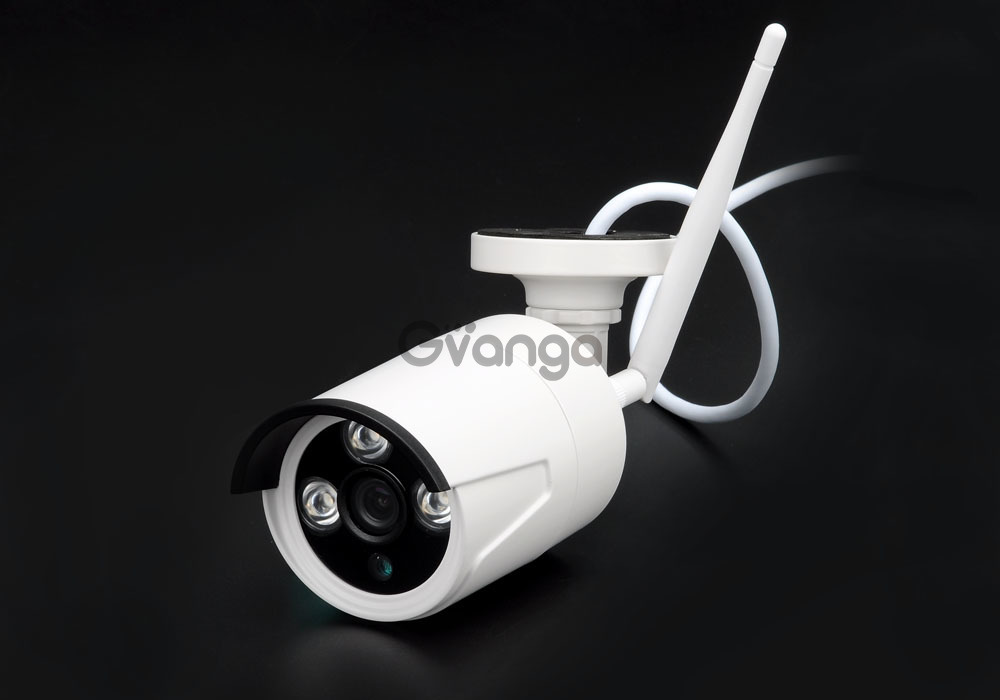

Camera

• Weatherproof Rating: IP66
• Resolution: 720P (1280x720) 16:9 High Defination
• Image Compression: H.264
• S/N Ratio: About 39.1dB
• Video Resolution: Main Stream: 720P (1280x720)
• Frame Rate: 1 to 25fps
• Alarm: Motion Detection
• Detection Area: Support 4 Detection Areas
• Alarm Notification: Email Snapshot Notification, FTP Snapshot Upload
• Basic Protocol: ONVIF 2.0 (Backward compatible)
• WIFI: 802.11b/g/n
• OS Supported: Microsoft Windows XP, Vista, Windows7
• Browser: IE6.0 and above (OCX plug-in), Google Chrome, Firefox (VLC plug-in)
• Online Visitor: Support 4 visitors at the same time
• IP mode: Dynamic IP address, Static IP address, Supporting WPS (Wi-Fi Protected Setup)
• DDNS: P2P, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
• Power Supply: Input: 110 to 240V, 50/60Hz; Output: DC 12V 4A
• Environment: Outdoor
• Working Temperature and Humidity: -10 to 50 Degrees Celcius, 30% to 80% RH
• Storage Temperature and Humidity: -20 to 60 Degrees Celcius, 20% to 90% RH

Camera Lens

• Lens: 3.6mm
• Image Sensor: 1/4 Inch Progressive Scan Sensor
• Viewing Angle: 75 Degrees

Camera Night Vision

• Infrared Light: 3 IR LEDs
• Filter Switch: IR Cut filter auto-switch automatically
• IR Distance: Up to 15 Meters
• Min LUX: Color: 0.1 Lux; B/W: 0.01 Lux

NVR Ports

• DC IN
• VGA Out
• HDMI Out
• USB
• RJ-45
• HDD (Up to 4TB)

Camera Connection

• DC IN
• RJ-45
• Antenna

Languages

• Afrikaans, Bahasa Indonesia, Bahasa Melayu, German, English, Spanish, Filipino, French, Italian, Magyar, Dutch, Portugues (Brasil), Portugues (Portugal), Vietnamese, Turkish, Greek, Russian, Hebrew, Arab, Thai, Korean, Chinese (Simplified), Chinese (Traditional), Japanese

Dimensions

• DVR/NVR dimensions: 259 x 233 x 45mm (L x W x D)
• DVR/NVR weight: 731g
• Camera dimensions: 176 x 65 x 65mm (L x W x D)
• Camera weight: 341g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• NVR
• RJ 45 Cable
• 4x Cable Cover
• USB Mouse
• 4x Screw Package
• 5x Power Adapter (1x NVR Power and 4x Camera Power)
• User Manual
• 4x IR Camera
• 4x Camera Antenna
