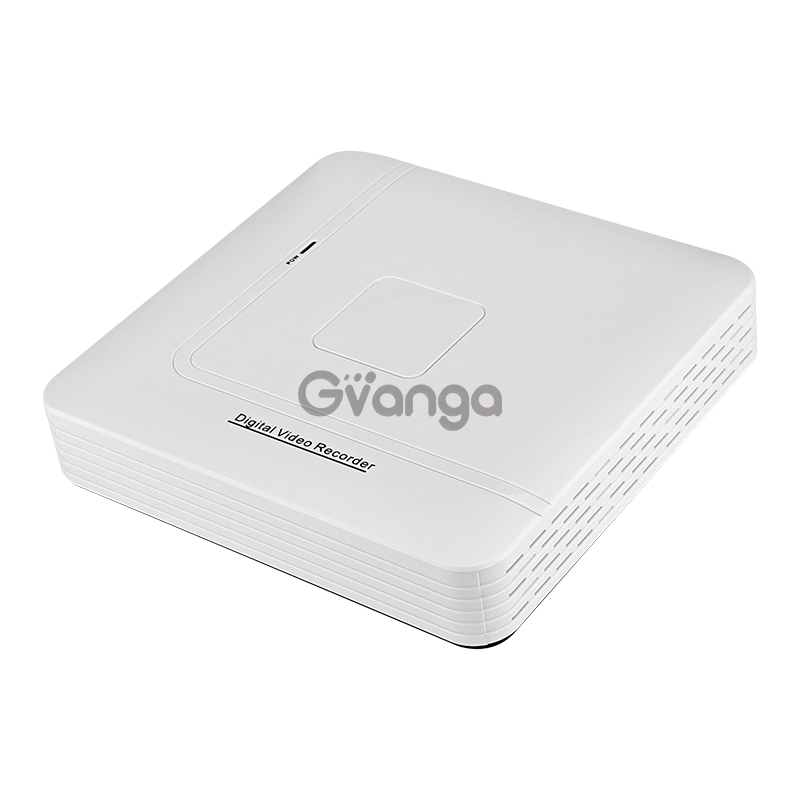

NVR Surveillance System

Key Features...

• Control and access your surveillance system remotely with this modern NVR surveillance system
• Set notifications and play back video remotely to always be 100% up to date about the security level of your property
• With its Power over Ethernet feature you no longer have to search for a power supply in inconvenient spaces
• IP67 waterproof ratings and 15 meter night vision ensure that this NVR kit functions properly both indoors as outdoors

NVR Surveillance System

Protect your property with this state of the art NVR surveillance system. Unlike traditional DVR systems that store data on the device itself this NVR surveillance system operate through the local network to send and receive data, allowing you to fully operate and control the system remotely. This NVR surveillance system is ideal for persons who are searching for a security system that can be operated from their computer, Smartphone, or tablet. IP cameras are the cutting edge of surveillance technology – including a NVR in to your system allows you to increase the number of cameras you are using and gives you the opportunity to add more advanced features to your surveillance network.

With its four 720p camera’s, embedded LINUX OS HI3515 Operating System, as well as a 1.0 mega pixel 1/4 inch progressive scanning CMOS sensor this NVR kit offers you the ideal means to control multiple cameras from one central location. By controlling your surveillance system remotely and using the cloud to store your data you now can store more video’s for a longer period of time and record larger HD video’s as compared to traditional DVR systems. This NRV kit furthermore allows you to set motion detection areas and alerts which will automatically inform you through an e-mail or text message when something seems out of the ordinary. Remote playback and video browsing allows you to check saved files or live broadcasts from all your surveillance camera’s without having to be at the actual location of your surveillance system.

Additionally its Power over Ethernet (PoE) feature transports electrical power along with data over the Ethernet cabling. This allows a single cable to supply both data connection as well as an electrical power supply to the IP cameras. No longer will there be the need to find a power source and plug in your power cables at inconvenient places. With PoE all that is required is to connect the data cable of the surveillance system and power will be delivered to the system simultaneously.

Each camera has an IP67 waterproof rating making them perfectly capable of operating in both indoor as well as outdoor environments. With its IR distance ranging up to 15 meters each camera offers a remarkable area of surveillance during both day and night time. This NVR surveillance kit offers great protection to your house, office, garage or any other property – significantly increasing the safety of your loved ones and / or assets.

This NVR Surveillance System comes with a 12 months warranty, brought to you by the leader in surveillance systems as well as wholesale electronic gadgets.

Manufacturer Specifications

General

• Operating System: Embedded LINUX OS HI3515
• Supports Remote View with Mobile Phones
• Control Mode: USB mouse
• Resolution: 1920x1080, 1440x900, 1280x1024, 1280x720,1024x768
• Video/Audio Compression: H.264
• Record Mode: alarm, motion detection, timing, manual
• Motion Detection: 4 Detection Areas
• Alarm Notification: Email Snapshot Notification, FTP Snapshot Upload, Event record to HDD

• Playback: Frame by Frame
• Application supports both local and remote playback, recording locally, browse video, Remote
  Setup
• APP: XMEye

Network

• Basic Protocol: ONVIF 2.0(backward compatible)
• OS Supported: Microsoft Windows XP/Vista/windows7
• Browser: IE6.0 and above (OCX plug-in), Google Chrome, firefox (VLC plug-in)
• Ethernet: 10Base-T/100base-TX Mobile
• Online visitor: Support 1 visitor at the same time
• Network Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P
• Support Mobile phone access: Android 4.0 and iOS 6.0 above
• Protocol: UPnP (play&plug), SMTP（email service), PPPoE (dial-up)、DHCP (Automatically
  Obtain an IP address),etc..

Camera

• Cameras Input: 4CHx720P (1280x720)
• Minimum illumination: 0.1 Lux at F1.2
• Resolution: 1280x720
• Image Compression: H.264
• Video code rate: 1Mbps to 6Mbps
• Waterproof Rating: IP67

Camera Lens

• Lens: 3.6mm fixed Lens
• Viewing Angle: 90 degrees
• Frame rate: 30fps
• Video Resolution: 720P(1280x720)
• Image sensor: 1/4 inch progressive scanning CMOS 1.0 Mega Pixel

Camera Night Vision

• Filter switch: IR cut filter auto-switch automatically
• Night Vision: IR LED lights (36 pcs IR LEDs)
• IR Distance: up to 15M

Memory

• SATA Hard Disk Drive Slot up to 4TB (HDD Not Included)

NVR Ports

• SATA Hard Disk Drive Slot
• 4x RJ45
• RS485
• VGA
• HDMI
• 2x USB
• RJ45 Ethernet Cable
• DC Power IN

Languages

• Bahasa Indonesia, German, English, Spanish, French, Italian, Magyar, Portugues (Brasil), Portugues (Portugal), Vietnamese, Turkish, Greek, Russian, Hebrew, Arab, Thai, Korean, Chinese (Simplified), Chinese (Traditional), Japanese

Dimensions

• DVR/NVR dimensions: 199x 233x 48mm (L x W x D)
• DVR/NVR weight: 530g
• Camera dimensions: 122x 84x 72mm (L x W x D)
• Camera weight: 462g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• NVR
• 4x IP Camera
• NVR Power Supply
• NVR Mouse
• 5x NVR Network Cable
• CD
• 4x Screws
• Manual
