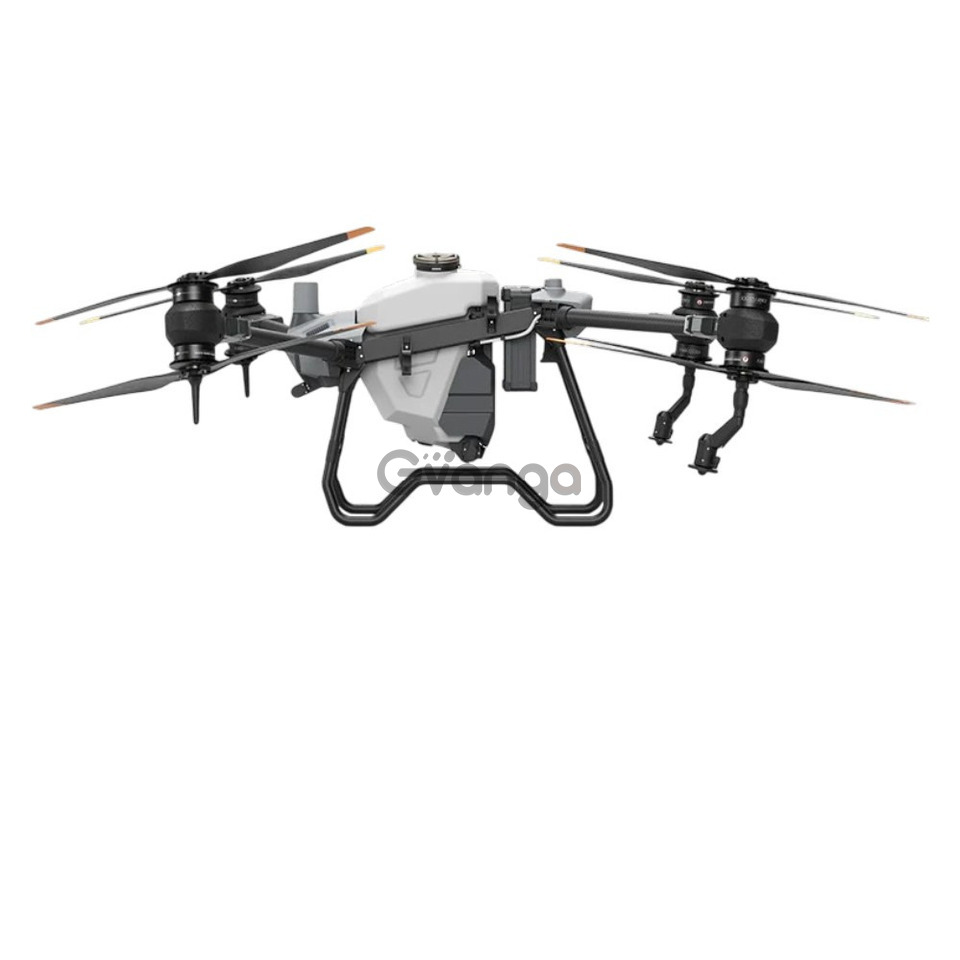

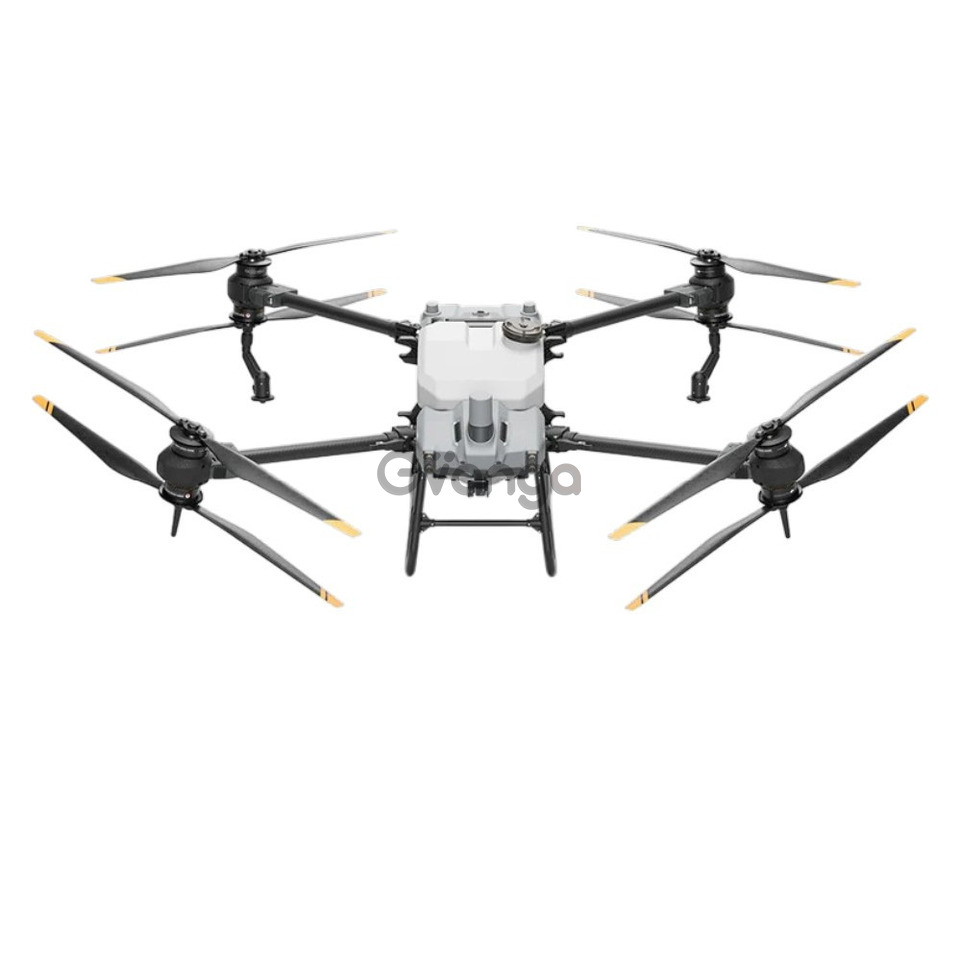

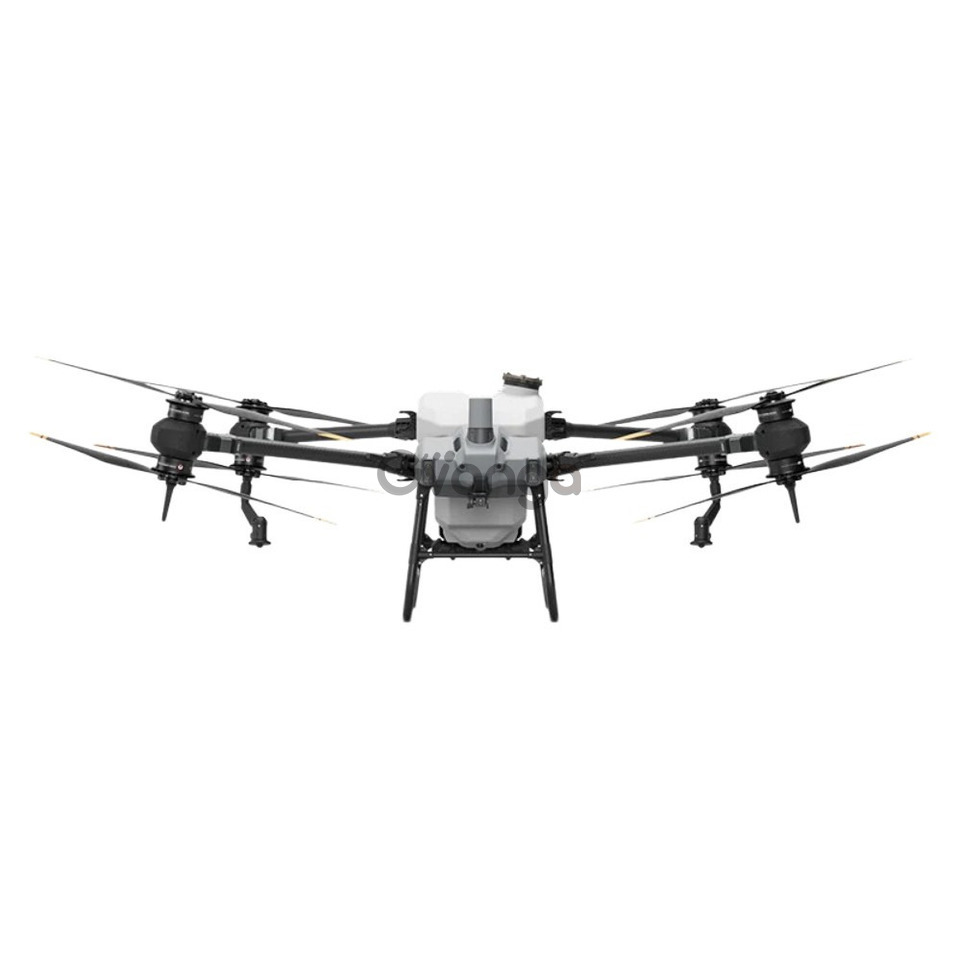

DJI AGRAS T40

The DJI Agras T40 is the flagship solution for modern precision agriculture, designed to handle massive workloads with unmatched efficiency. Featuring a revolutionary coaxial twin rotor design, the T40 provides superior lift and stability, allowing for a massive 40L spraying payload and a 50kg spreading payload.

Equipped with Dual Atomizing Spraying technology and the Active Phased Array Radar system, the T40 ensures uniform chemical distribution and 360-degree obstacle sensing. It is built to perform in the most demanding environments, redefining the standards for large-scale drone farming.

Key Features
High-Capacity 40L Spray Tank: Engineered for wide coverage with fewer refills during large-scale operations.
Coaxial Twin Rotor: Increases payload capacity by 33% and enhances flight performance under heavy loads.
Dual Atomization Technology: Ensures even droplet distribution (50-300 μm) with flow rates up to 12 L/min.
Active Phased Array Radar: Combined with Binocular Vision for real-time terrain following and multidirectional obstacle avoidance.
Smart Mapping: Integrated FPV camera supports aerial surveying for automated route planning.
Weather Resistance: IPX6K rating ensures rugged durability and easy cleaning with water.
Full Technical Specifications
PERFORMANCE & CAPACITY
Max Spraying / Spreading Payload 40 kg / 50 kg
Aircraft Weight (No Battery) 38 kg
Max Takeoff Weight 90 kg (Spray) / 101 kg (Spread)
Max Diagonal Wheelbase 2184 mm
SPRAYING & SPREADING SYSTEM
Spray Tank / Spread Tank 40 L / 70 L
Max Spray Flow Rate 12 L/min
Max Spreading Rate 1.5 tons of fertilizer per hour
Effective Spray Width Up to 11 meters
FLIGHT & INTELLIGENCE
Obstacle Sensing Range 1 – 50 meters
Hover Accuracy (RTK) ±10 cm (Horizontal), ±10 cm (Vertical)

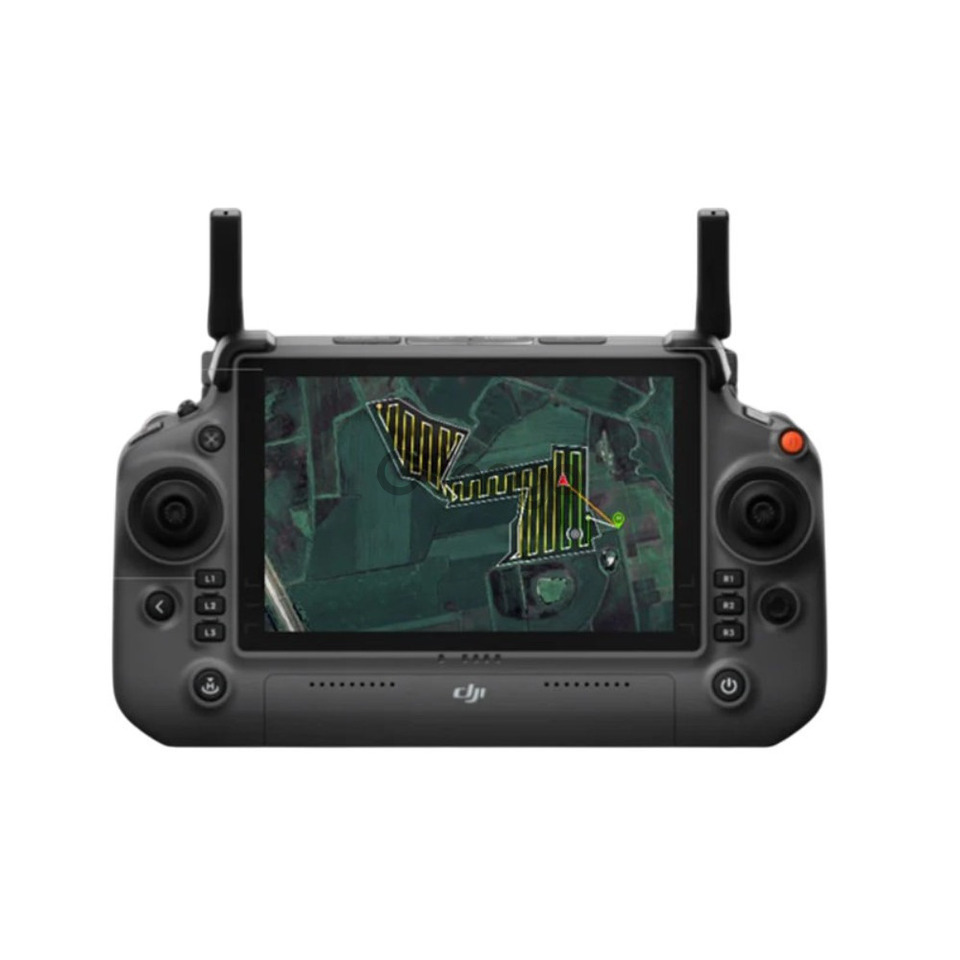

Remote Controller 7-inch Screen, Octa-core processor
Package Includes:
1x DJI Agras T40 Aircraft
1x DJI Smart Controller
All Required Cables and Standard Accessories
