Camnoopy NVR Kit

Key Features...

• Protect your property with this Camnoopy NVR Kit that holds four 720P security cameras
• IR Cut Technology automatically switches in between regular filming and night vision mode when required
• Access your surveillance cameras remotely through the internet or mobile application
• With up to 4TB of external data you don’t have to worry about running out of storage space any time soon

Camnoopy 720P NVR Kit

Leave your home with confidence and always be up to date about your property’s latest security status - with this 720P NVR kit from Camnoopy you no longer have to worry about unwanted visitors. No matter where you are, thanks to its mobile application you will always be able to access your security network to ensure that your loved ones and property can enjoy the highest level of safety.

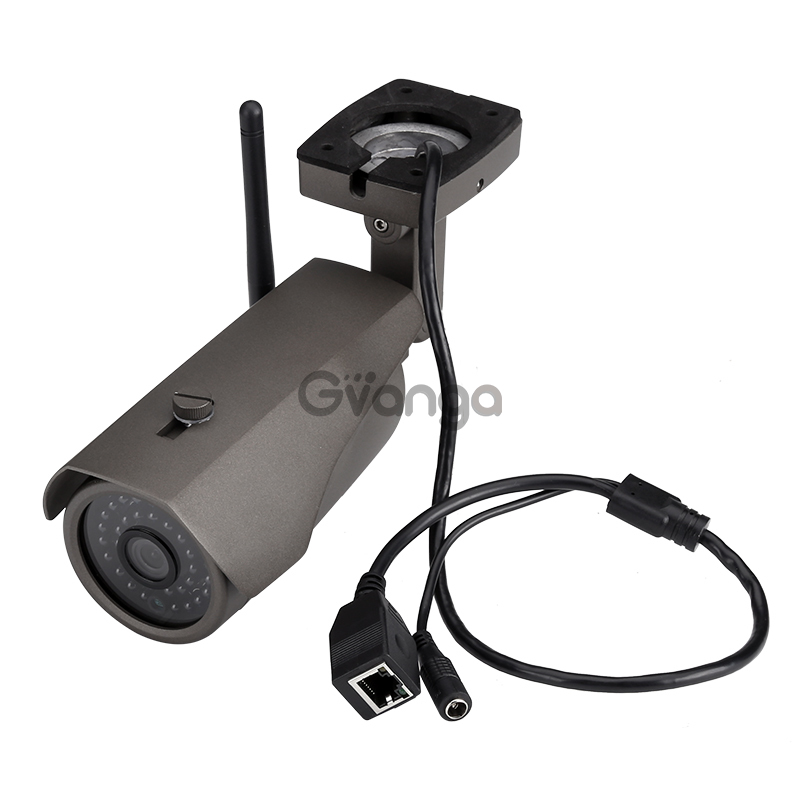

Coming with four 90 degree viewing angle cameras this Camnoopy NVR Kit offers the means to protect any property. Featuring a 1/4 inch progressive scanning CMOS image sensor the cameras are capable of recording clear and high digital images up to 720P, enough to clearly recognize a person from a significant distance. Holding IP67 waterproof certification these security cameras are furthermore perfectly capable for indoor and outdoor usage alike.

Holding up to 36 IR LEDs this waterproof security camera set is capable of recording HD images at both day and night. Featuring IR cut technology the security cameras automatically switch from regular filming to night vision mode and vice versa when required. When active in night vision mode these Camnoopy security cameras offer up to 15 meters of viewing distance, ensuring you that no matter how dark it gets, no unwanted visitors can get near to your property unseen.

The NVR kit’s mobile application, Yoosee, additionally provides you remote access to view your camera’s broadcastings at any given moment. No matter where you are, with these feature you will constantly be up to date about your property’s latest security status. Offering the possibility to insert up to 4TB of external data this NVR kit takes away the fear of running out of storage space any time soon. When necessary the camera can be programmed to record only during certain hours of the day, providing you a way to efficiently handle your storage space.

This Camnoopy NVT Kit comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale security systems.

Manufacturer Specifications

General

• Operating System: Embedded LINUX OS HI3515
• Compression Format: H.264
• NVR Resolution: 1920x1080, 1440x900, 1280x1024, 1024x768
• Cameras Input: 4 x 720P (1280x720)
• Supports Remote View with Mobile Phones
• Support Mobile phone access: Android 4.0 and iOS 6.0 above
• APP Name: Yoosee
• Control Mode: USB mouse
• Video Systems: PAL/NTSC
• Frame by frame playback mode: forward and back, play correctly
• Specification synch-playback: 4CH
• Record Mode: Manual, Timing
• Power Supply Input: 100-240V, 50/60Hz
• Power Supply Output: DC 12V, 2A

Connectivity

• Basic Protocol: ONVIF 2.0 (backward compatible)
• Ethernet: RJ45, 10Base-T/100base-TX Mobile
• OS Supported: Microsoft Windows XP/Vista/windows7
• Browser: IE6.0 and above (OCX plug-in), Google Chrome, firefox (VLC plug-in)
• Network Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P
• Mobile Phone Browsing

Camera

• Image sensor: 1/4 inch progressive scanning CMOS 1.0 Megapixel
• Lens: 3.6mm fixed Lens
• Resolution: 1280x720
• Image Compression: H.264
• Video code rate: 1Mbps to 6Mbps
• Viewing Angle: 90 Degree
• Frame rate:  30fps
• Video Resolution: 4 x 720P(1280x720)
• Power supply Input: 100-240V, 50/60Hz; Output: DC 12V, 1.5A
• Working Humidity: Less than 95%
• Waterproof Rating: IP67

Camera Night Vision

• Infrared Light: 36 IR LEDs
• IR Distance: up to 15M
• Minimum illumination: 0.1 Lux at F1.2
• Filter switch: IR cut filter auto-switch automatically

Memory

• 1 SATA HDD (3.5 inch), up to 4TB (not included)

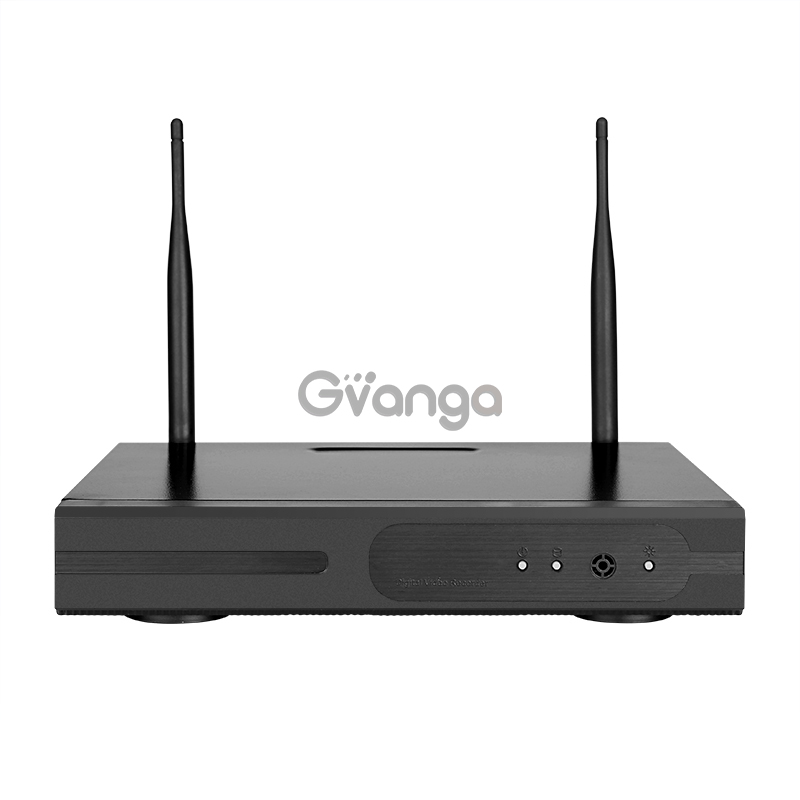

NVR Ports

• x1 SATA Hard Disk Drive Slot
• DC IN
• VGA Out
• HDMI Out
• USB
• RJ45

Camera Port

• RJ45
• Power Slot
• Antenna

Languages

• Afrikaans, Bahasa Indonesia, Bahasa Melayu, German, English, Spanish, Filipino, French, Italian, Magyar, Dutch, Portugues (Brasil), Portugues (Portugal), Vietnamese, Turkish, Greek, Russian, Hebrew, Arab, Thai, Korean, Chinese (Simplified), Chinese (Traditional), Japanese

Dimensions

• NVR dimensions: 250x 232x 43mm (L x W x D)
• NVR weight: 727g
• Camera dimensions: 226x 80x 75mm (L x W x D)
• Camera weight: 479g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• NVR
• 4x IP Camera
• 4x IP Camera Adaptor
• NVR Power Adaptor
• NVR Mouse
• Network Cable
• 4x Screw Pack
• 4x Wi-Fi Antenna
• NVR Screw Pack
• User Manual
