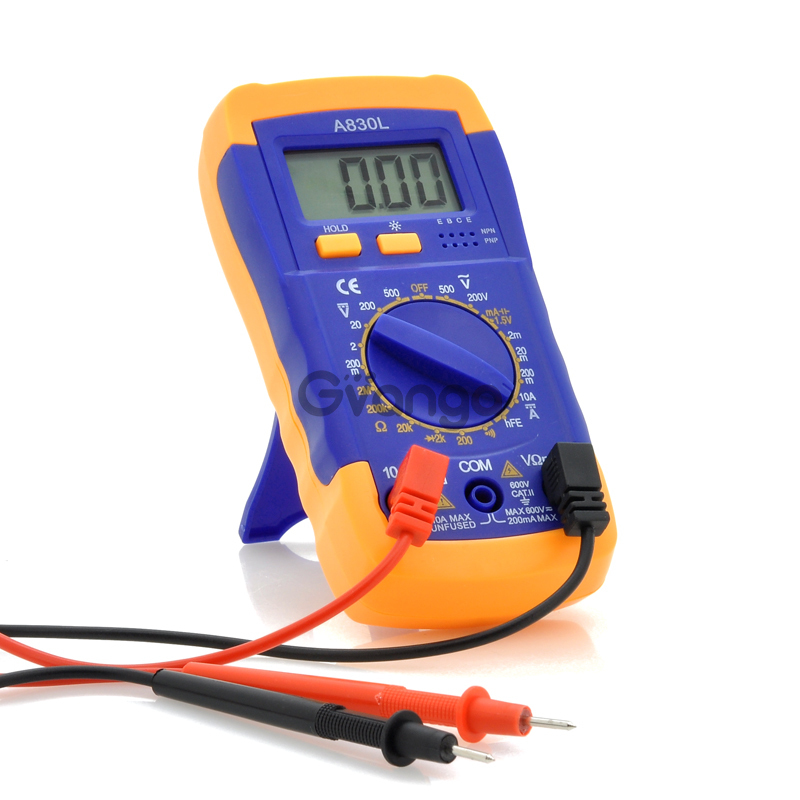

8 Function Digital Multimeter

Digital Multimeter, which is a special 8 Function Edition can measure a vast range of voltages, current, resistance, continuity (connection between two points), testing diodes. This multimeter, also known as a VOM (Volt-Ohm meter), is an electronic measuring instrument that combines several measurement functions in one unit. This multimeter would include basic features such as the ability to measure voltage, current, and resistance. This digital multimeter (DMM, DVOM) displays the measured value in numerals and it can be used to troubleshoot electrical problems in a wide array of industrial and household devices such as electronic equipment, motor controls, domestic appliances, power supplies, and wiring systems. This Digital multitester is a must have testing tool for your tool box, shed, garage, car trunk, etc. Its portability enables you to be able to take it with you wherever you go, and provides you with a multitude of features that helps you achieve the best results every time. This digital device has a 1.8 inch LCD display therefore you can clearly read the measurement. As a voltmeter, this tool can measure the amount of AC or DC voltage flowing through a circuit. Voltage is a difference in potential energy between the two points. In all types of multimeters, the quality of the switching elements is critical to stable and accurate measurements.  This hand-held Multimeter is also great for useful fault finding and field service work or as a bench instrument that measures to a very high degree of accuracy. It can be used to troubleshoot electrical problems in a wide array of industrial and household devices such as batteries, motor controls, appliances, power supplies, and wiring systems. This product is in stock and can be dispatched within 24 hours of ordering with a 12 month warranty. Brought to you by the leaders in wholesale electronics and cool gadgets. At a Glance...

LCD Display

Auto power off

Digital Multimeter

Handheld Multimeter

Great tool bag accessory

Great hardware hacking and reverse engineering

Manufacturer Specifications General

Material: Hard Molded ABS Casing

On Board Buttons: Power, Light, Hold

Battery Test: Range 1.5V (Resolution 41.1mA, Accuracy = +/- 1.8%of rdg + 2 Digits), Range 1.5V (Resolution 1.5V, Accuracy = +/- 1.3%of rdg + 2 Digits, Range 3V (Resolution 3V, Accuracy = +/- 1.3%of rdg + 2 Digits), Range 9V (Resolution 9V, Accuracy = +/- 1.3%of rdg + 2 Digits), Range 24V (Resolution 24V, Accuracy = +/- 1.3%of rdg + 2 Digits)

Transistor hFE Test: Range NPN, PNP, Test Range 0-1000, Test Current/Voltage, Ib=10uA/Vce=3V

Diode Test: Resolution 1mV, Function Display: Read approximate forward voltage of diode

Respond: Average, Calibrated in RMS of Sine Wave

Input Impendence: 10M (Ohms)

Frequency Range: 40 to 400Hz

Forward DC Current: Approximate 1mA

Reversed DC Voltage: Approximate 3.0V

Continuity: Built-in buzzer wikII sound if Resistance is less than 50 (Ohms)

Overload Protection: 250V DC or RMS AC, F200mA/250V Fuse, 250V for 200mV Range, Effective DC or AC 600V for Other Ranges

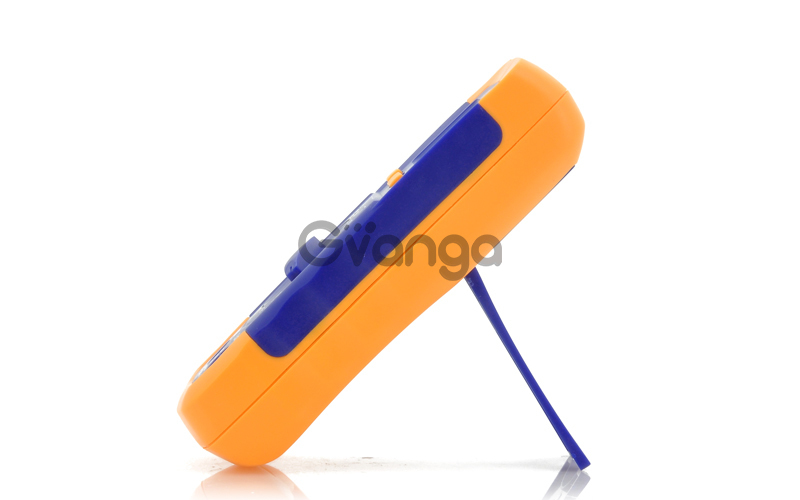

Kick Stand

Power Source: 9V Battery (Included)

DC/AC Current and Voltage

Display

Display Size: 1.8 Inch LCD

Backlight

Non Touchscreen

Dimensions

Main product dimensions: 144x70x35mm (L x W x D)

Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Product Notes

Portable and versatile, easy to carry around and fits neatly in your tool bag

Perfect for home DIY enthusiast as well as professional electricians and engineers

Please Note that the 10A range is not fused

Package Contents

Digital Multimeter

Test Cables

User Manual

Battery
