8 Channel NVR Kit + POE Cameras

At a Glance...

• 8 Channel ONVIF complaint NVR Kit is your comprehensive security solution
• Plug and Play, POE network cameras makes for a quick and easy setup
• 8 Channel HD playback and HDMI output for a clear view
• Mobile surveillance support for smart phones

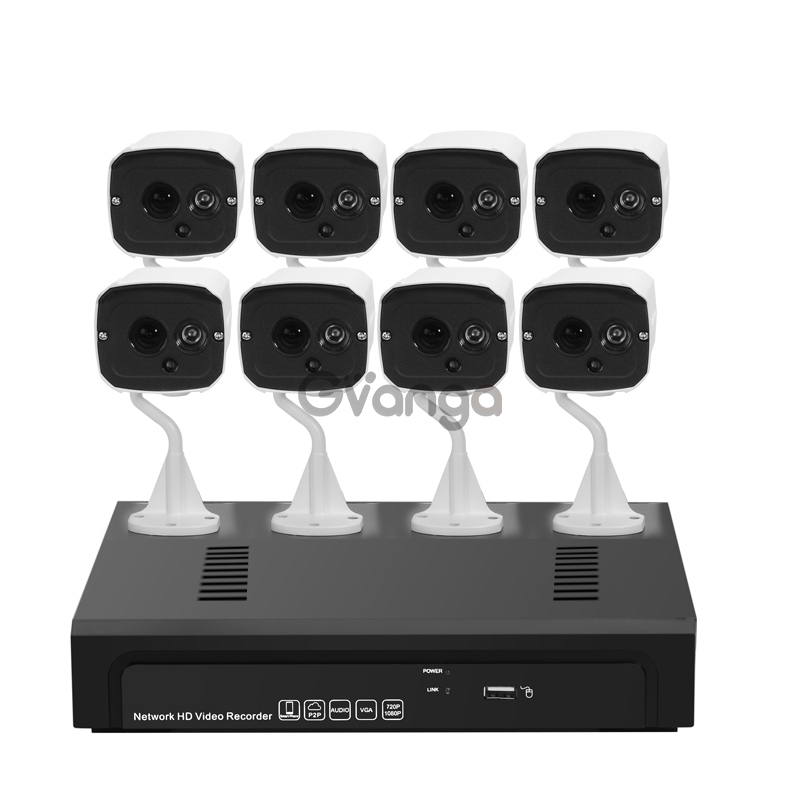

8 Channel POE Camera NVR Kit

View your security footage in HD brilliance for a fuller view of your property and all that goes on inside and around it. Ideal for any business or home this 8 channel NVR kit is quick and easy to install as each of the 8 IP cameras comes with PoE support. So cabling is kept to a minimum.

Accessing the live video feed couldn't be easier as this 8 channel NVR has cloud P2P and mobile surveillance support so remote viewing is a few simple steps away with your Smartphone or tablet and Windows Blackberry, iOS and Android are all supported.

With 4 detection areas and a 6 level sensitivity it’s easy to protect all the crucial areas of your home or workplace receiving email notifications and recording any important events that you need to be aware of.

POE IP Camera

Each of the 8 cameras can has its own mount and with a 1/3 inch CMOS sensor delivers 960p HD resolution images to the NVR. With a SATA port and support for up to 4TB HDD there’s more than enough room for your security footage. With night vision support and IR Cut the cameras provide coverage day and night so not a second will go unmonitored. To make for simple installation each camera just needs connection with an Ethernet cable and no separate power supply is required as they support PoE.

This 8 Channel POE IP Camera NVR kit comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale NVR Kits.

Manufacturer Specifications

General

• Operating System: Embedded Linux
• Model Number N8/1U-POE
• Supports Remote View with Mobile Phones
• Control Mode: USB mouse
• Video/Audio Compression: H.264
• Video Standard 1080P(1920×1080)30fps, 960P(1280×960), 720P(1280×720)30fps
• Monitoring Image Quality 1080P(1920×1080), 960P(1280×960), 720P(1280×720)
• Image Motion Detection Each screen can set mutiple detection areas and set 6-level sensitivity（IPC Support）
• Record Mode: Manual , Auto, Dynamic Detection, Alarm Trigger (Partly Needs IPC Support)
• Recording Playback Quality 4 Ch Playback in 4 x 720 mode; 1Ch 1080P playback in 4Ch 960P/1080P mode
• Region Cover Every channel can set 4 cover regions （IPC Support）
• Recording Storage Local HDD, network
• ONVIF 2.1
• Support P2P mobile phone monitoring (compatible iPhone / Android)
• Power Supply DC48V 2.5A
• Power Consumption ≤115W（without HDD）
• Working Temperature -10 to 55 Degree Celsius
• Working Humidity 10% to 90%

Network

• Ethernet: RJ-45 Interface 10/100Mbps
• Network Protocol: RTSP, FTP, PPPOE, DHCP, DDNS, NTP, UPnP
• Wi-Fi
• IP mode: Dynamic IP address, static IP address, Supporting WPS (Wi-Fi Protected Setup)
• Support Mobile phone access: Android, iPhone, Windows mobile
• Online visitor: Support 2 visitors at the same time
• OS Supported: Microsoft Windows XP, Vista, Windows7

Camera

• POE Camera
• F-Stop: 1.2
• Resolution: 1280x960
• Image Sensor: 1/3 Inch
• Viewing Angle: 60 Degrees
• Frame Rate: 1 to 30 fps
• Video Resolution: Main stream 1280x960, 1280x720; SUB stream 640×480, 640×360

Camera Night Vision

• IR Cut: Filter auto-switch
• Infrared Light: 1 IR Array LEDs
• Min LUX: 1.0
• IR Distance: up to 20 Meters

Alarm

• Alarm: Motion Detection
• Detection Area: Support 4 Detection Areas
• Alarm Notification: Email Snapshot Notification, FTP Snapshot Upload

Memory

• SATA Hard Disk Drive Slot up to 4TB (HDD Not Included)

NVR Ports

• DC In
• 1x SATA Hard Disk Drive Slot
• Video Input: 8 IPC
• Video Output: 1 VGA, 1 HDMI
• Audio Input: 1 AUX In Mic
• Audio Output: 1 Aux Out
• 3x USB 2.0
• Network: 1x RJ45 Network Port

Camera Connection

• IPC

Languages

• German, English, Spanish, French, Italian, Portuguese (Brasil), Turkish, Russian, Chinese (Simp), Chinese (Trad)

Dimensions

• DVR/NVR dimensions: 259 x 224 x 46 mm (L x W x D)
• DVR/NVR weight: 878g
• Camera dimensions: 55 x 67 x 87 mm (L x W x D)
• Camera weight: 263g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• DVR
• DVR Power Adapter
• 8x IP Camera
• 8x Mounting Screws
• 8x Cable Covers
• 8x Camera Power Adapter
• USB Mouse
• User Manual
• 2x CD
