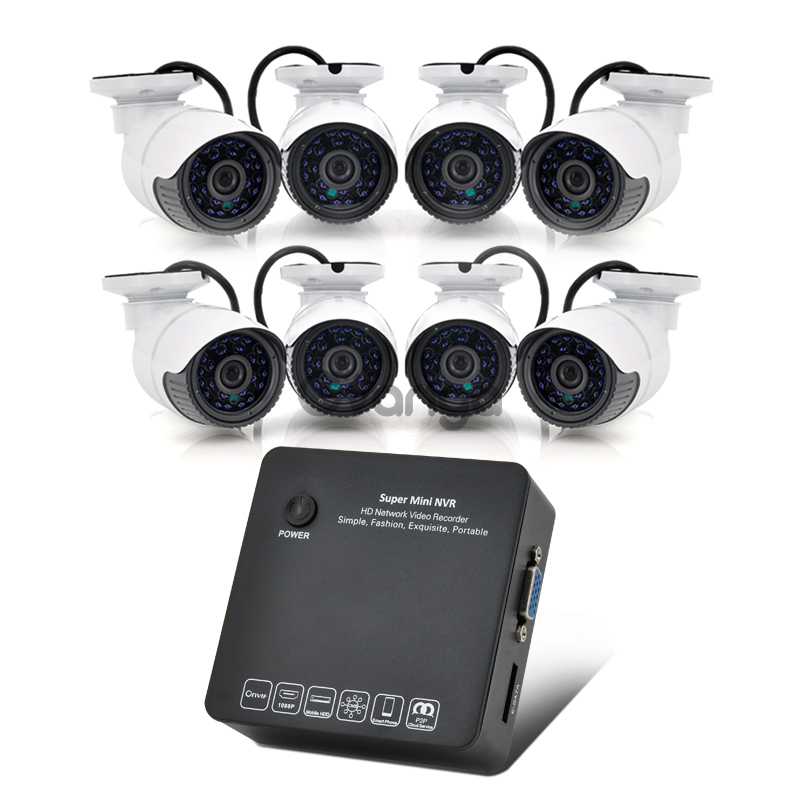

8 Channel HD Network Video Recorder System

8 Channel 1080p/960p/720p HD Network Video Recorder System features Cloud P2P, E-SATA Port, eight 720p IP Cameras that are ONVIF Supported is ideal for keeping more eyes over your property.

Network Video Recorder

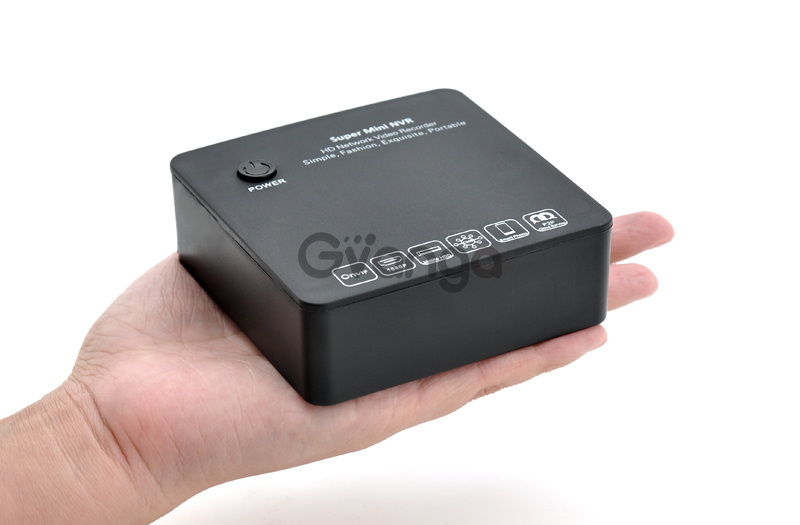

This eight channel network video recorder supports the accompanying eight IP cameras to provide a complete and secure surveillance set up. The NVR is mini in design and can be placed almost anywhere for it to work and does not require to be near the cameras as it just needs to be on the same LAN network as the IP based cameras. Supporting an array of branded cameras and features, this NVR with an embedded LINUX operating system is easy to set up.

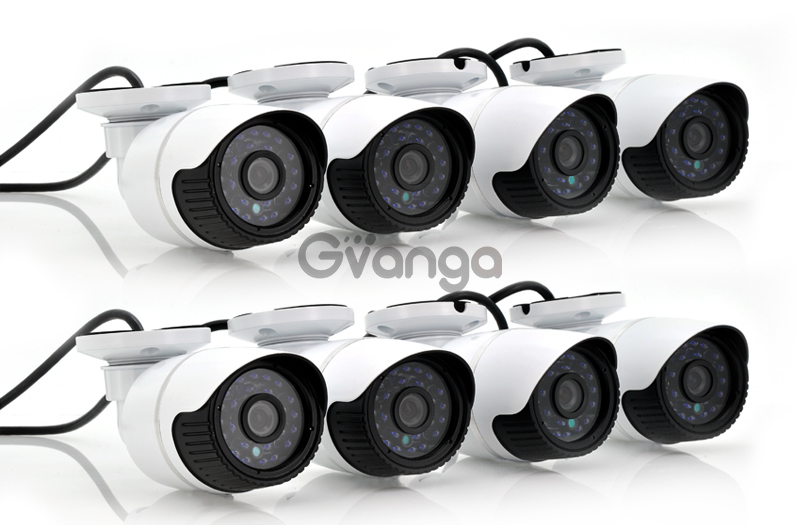

Eight Cameras

What sets the NVR apart from the DVR is that all the video on an NVR is encoded and processed at the camera. Afterwards the video is streamed to the NVR for storage or remote viewing. All the information can be backed up via U disk, USB mobile HDD, USB DVD-RW and network storage. You can view the contents directly from your mobile phone as it supports a vast range branded smartphones including iPhone and Android devices. The cameras come with all the screws so you can set up the eight extra set of eyes to keep a watch of everything that is going on in your home or office.

This product is in stock now, we guarantee next working day shipping and offer a 12 months warranty on all our products. Brought to you by the leader in electronic devices and wholesale IP enabled NVR systems.

At a Glance...

• 8 Channel 1080p/960p/720p HD Network Video Recorder System
• Cloud P2P
• E-SATA Port
• 8x 720p IP Cameras
• ONVIF Supported

• Operating System: Embedded LINUX Operating System
• Dual Stream
• Display Resolution: 1920x1080 / 1440x900 / 1366x768 / 1280x1024 / 1024x768 / 800x600
• Monitoring Image Quality:1080p (1920×1080), 960p (1280×960), 720p (1280×720)
• Recording Playback Quality: 8 Channel 720p/960p Model: 4 Channel Simultaneously Playback / 8 Channel 1080p Model: 1 Channel 1080p Playback
• Backup Way: Support U Disk, USB Mobile HDD, USB DVD-RW, Network Storage + Backup
• Operation Way: Mouse
• Local Login: User name and Password
• Recording Storage: Local HDD, Network
• Video Input: 8x 720p IP Camera
• Audio Input: 8/1 Channel audio input
• Video Output: 1 Channel VGA +1 Channel HDMI
• Network Port: 1 RJ45,10M/100M Self-adaptive LAN Port
• USB Port:2 USB 2.0 Ports, E-SATA Port
• Wireless Port: 3G，Wi-Fi
• HDD: Mobile HDD/ E-SATA/ U Disk
• Mobile Surveillance: Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) Smart Phone
• Supported Protocol: ONVIF
• Power Consumption: < 10W（Without HDD）
• Working Temperature:-10 to 55 Degree Celsius
• Working Humidity: 10％ to 90％

• High Resolution 1/3 Megapixel CMOS Sensor
• Integrated 3.6mm Megapixel lens
• 60 Degree Angle
• Day and night Application Makes 30 Meter IR View
• H.264 Compression
• Real time transmission up to 25FPS(1280x720p - 25FPS)
• Hardware Motion Detection Supported
• DC: 12V/1A
• ONVIF 2.0 Compliant
• Ethernet: RJ-45 Interface 10/100Mbps
• Supported Protocol: HTTP, FTP,TCP/IP, UDP, SMTP, DHCP, PPPOE, DDNS, UPnP, ONVIF
• Mobile Phone Browser
• Internet Browser: Firefox 4, Google Chrome and IE 6.0
• Supported OS: Windows XP/Windows7

• NVR Dimensions: 94x89x30mm (L x W x D)
• NVR Weight: 104g
• Camera Diemensions: 154x68x66mm (L x W x D)
• Camera Weight: 335g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

• Dual Stream: Each channel can set main stream and sub stream
• Every Channel Can Set 4 Cover Regions (IPC Support)
• Compatible with Main Brand IP Cameras: AXIS, SONY, Panasonic, SANYO, BOSCH, SAMSUNG, Honeywell, VIVOTEK, Ambarella, HIKVISION, DAHUA, Histream, Grandstream, TOPSEE, Launch, WISION, HYVISION, WAPA

• Mini NVR
• 8x IP Camera
• 8x Camera Power Adaptor
• NVR Power Adapter
• 2x CD
• 8x Screws
