8 Channel DVR Surveillance System

At a Glance...

• 8 Channel DVR kit is a one click purchase for your safety and security
• 1/4 Inch CMOS cameras deliver a great quality picture night or day
• Connect via a PC or your Mobile Phone to view live camera feeds

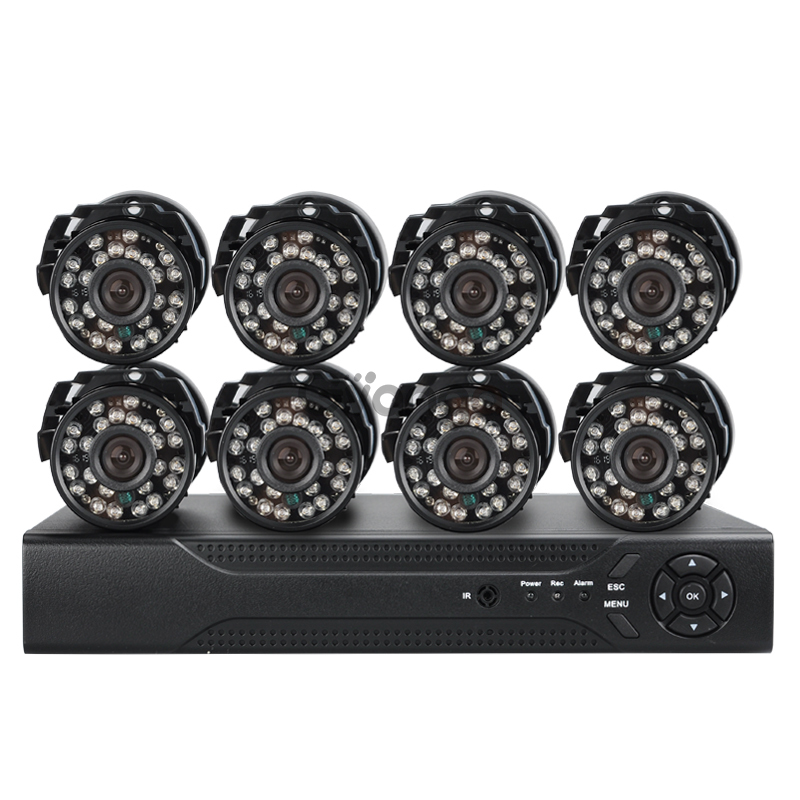

8 Channel Comprehensive DVR with outdoor cameras

This 8 Channel DVR comes complete with 8 outdoor cameras with a 1 /4 inch COMS sensor that are ready to install for a comprehensive surveillance system. Each camera has a fully adjustable bracket and comes with its own BNC and power lead making them easy to install anywhere you like to record high definition of every corner or your property. So they can be mounted in any location you like and as they come with all the required cables this surveillance kit is ready to go direct from the box.

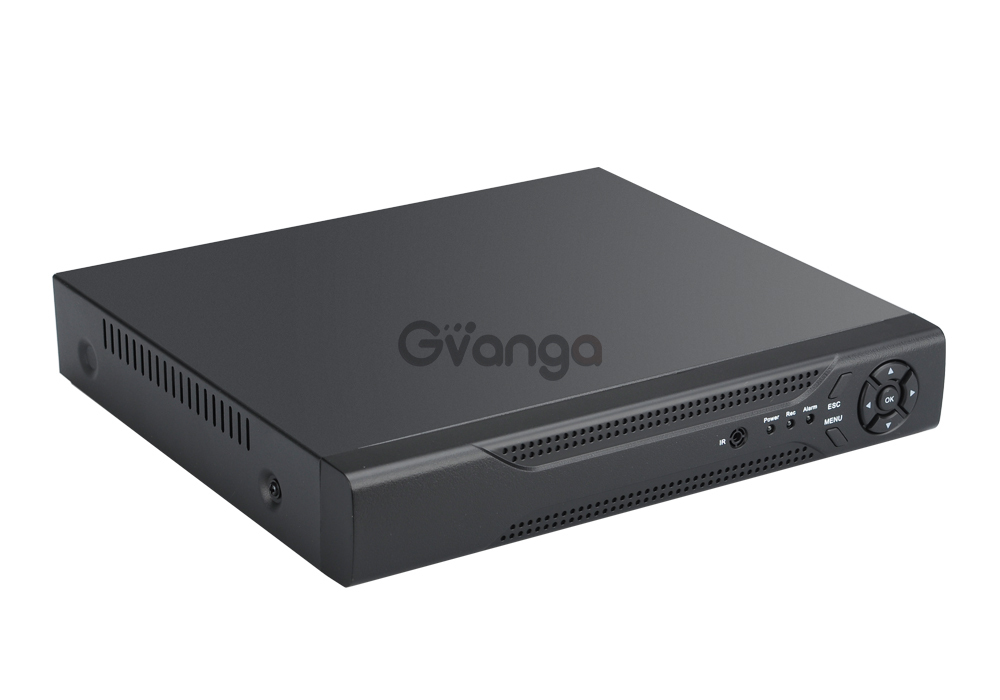

The DVR has a SATA port that supports HDD up to 2TB and with H.264 compression that gets you loads of storage for recording the camera footage. The mouse and remote control let you easily adjust the settings and switch between the camera viewing modes so you can monitor all 8 cameras at once if you so wish. With a HDMI output its easy to link this modern DVR to most TV’s and you can even choose to log in and view the footage from a PC or your mobile devices as remote viewing is supported for all common mobile phones.

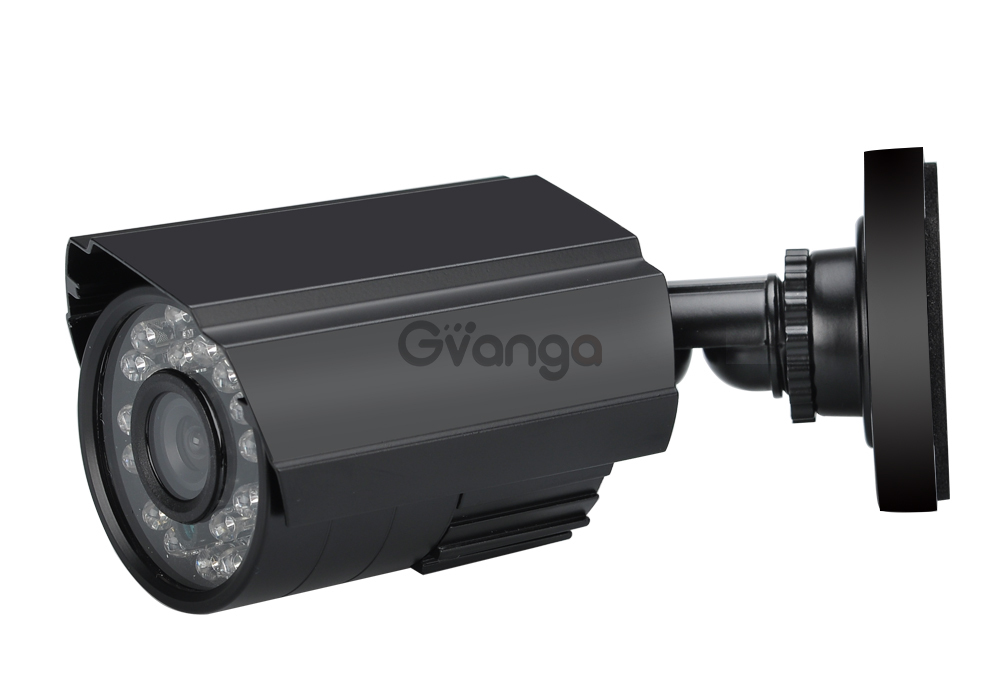

The 8 robust outdoor cameras have a weatherproof design allowing them to stand up against the forces of nature and with each camera having 24 IR LEDs that will turn on when it gets dark they can keep a watchful eye out day or night with 20 Meter night vision.

This, easy to install, simple to use and well priced 8 camera DVR security system is a great deal that comes in much cheaper than if you bought the components separately and you have the peace of mind that they will all work ion harmony together, coming with 12 months warranty this high end 8 Channel DVR with outdoor cameras is brought to you by the leader in electronic devices as well as wholesale surveillance systems.

Manufacturer Specifications

General

• Supports Remote View with Mobile Phones
• Control Mode: USB mouse
• Video Systems: PAL/NTSC (Auto)
• Resolution: HDMI (1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768), VGA (1024x768)
• Resolution: AHD-L/960H, D1 (720x480), HD1 (360x240), CIF (352×288)
• Video Compression: H.264
• Record Mode: Manual
• Media Backup: USB / Network
• PTZ: 1xRJ485 Support PELCO-D,PELCO-P, Protocol

Connectivity

• Ethernet: RJ-45 Interface 10/100Mbps Ethernet
• Mobile Phone Support: iPhone, Symbian OS, Blackberry and Android operation system Mobile phone

Camera

• Video System: PAL
• Horizontal Definition: 420 TV Line
• Effective Pixels: PAL:648(H)x488(V)
• Auto Tracking White Balance

Camera Lens

• Lens: 3.6mm
• F-Stop: 1.2
• Image Sensor: 1/4 Inch CMOS
• Viewing Angle: 60 Degrees
• Video Output: BNC

Camera Night Vision

• Infrared Light: 24 IR LEDs
• IR Distance: 20M
• Min LUX: 0Lux / F=1.2
• Infrared Lamps: Night Opening, Day Turn off

Memory

• SATA Hard Disk Drive Slot up to 2TB (HDD Not Included)

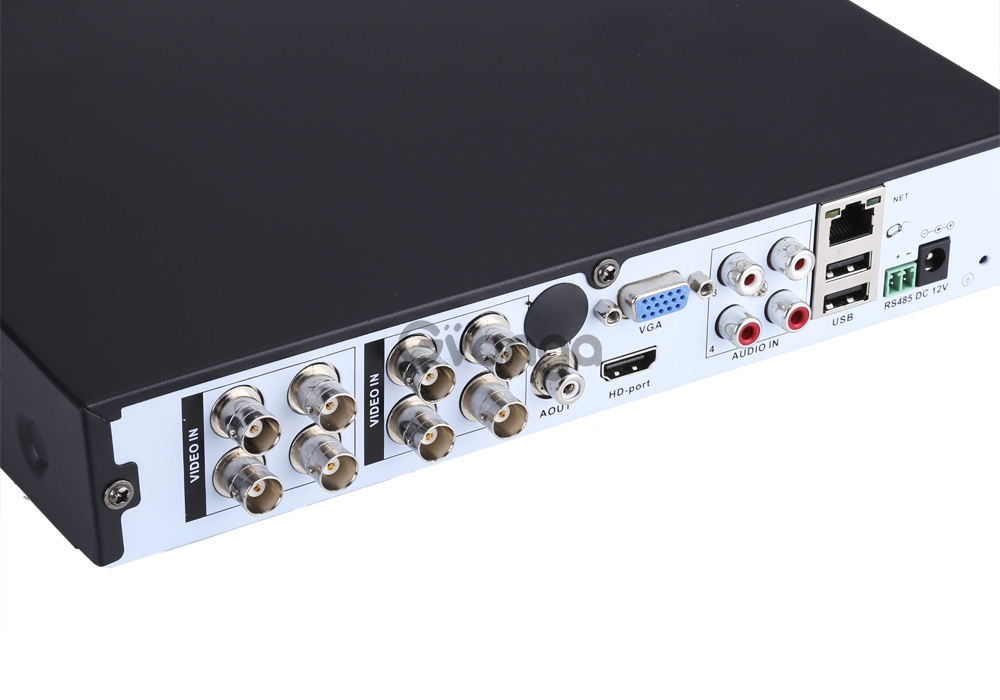

DVR Ports

• SATA Hard Disk Drive Slot
• Video Input: 8CH BNC
• Video Output: 1CH BNC, 1CH VGA, 1CH HDMI
• Audio Input: 4CH RCA
• Audio Output: 1CH RCA
• 2x USB 2.0
• 1X RJ 45 Ethernet
• PTZ: 1x RJ485 Support PELCO-D, PELCO-P, Protocol

Camera Connection

• BNC
• Power

Languages

•  English, Chinese (Simplified), French, Italian, Turkish, Greek, Russian, Portuguese, Spanish, Persian, Polish, Greek

Dimensions

• DVR/NVR dimensions: 229 x 254 x 42 mm (L x W x D)
• DVR/NVR weight:  864g
• Camera dimensions: 149 x 52 x 57 mm (L x W x D)
• Camera weight:  214g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• DVR
• CD
• 8x Outdoor Camera
• 8x BNC AV Power Cable
• Manual
• 2x 4 Way Power Splitters
• 2x Power Adapter
• 2x Adapter Leads
• User Manual
• Remote Control
• Mouse
• 8X Screw Sets
