4 Channel NVR Kit

Key Features...

• The 4 Channel kit with Wi-Fi 720P cameras is a great choice for home or office security
• 720p video recording at 25 fps and 20-30 meter night vision brings reliable video feedback night or day
• Motion detection and remote alarm notifications with e-mail snapshot and video recording
• Supports Android and iOS platforms for remote viewing

Feel safe and secure and keep an eye on your property when away with the compact 4 channel NVR kit coming with wireless 720P cameras, motion detection, night vision, email notifications and more.

4 Channel NVR Kit

This 4 channel NVR kit will serve as a reliable protector of your property so that you can have peace of mind even when thousands of miles away. Perfect for a household, storage area or a small office, it will provide you with clear and stable video feedback day and night.

The NVR kit includes 4 wireless cameras with 720P resolution at 25 frames per second. With the support of 4 motion detection areas, you will be instantly alerted to any suspicious activity and a snapshot of the unexpected visitor will be sent right to your email.

Each of the 4 cameras come with 20-30 meter night vision, so you will be able to have a clear view of your property even at night. The system is easy to set up and comes with all the needed accessories. Using it is a piece of cake as well, thanks to the support of both Android and iOS platforms — simply download the dedicated app ad you can access the system direct from your smartphone or tablet PC.

The system features H.264 encoding for efficient use of storage space. Plus with support for HDDs of up to 3TB theres more than enough storage for days of surveillance.

The 4 Channel NVR Kit comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale NVR kits.

Manufacturer Specifications

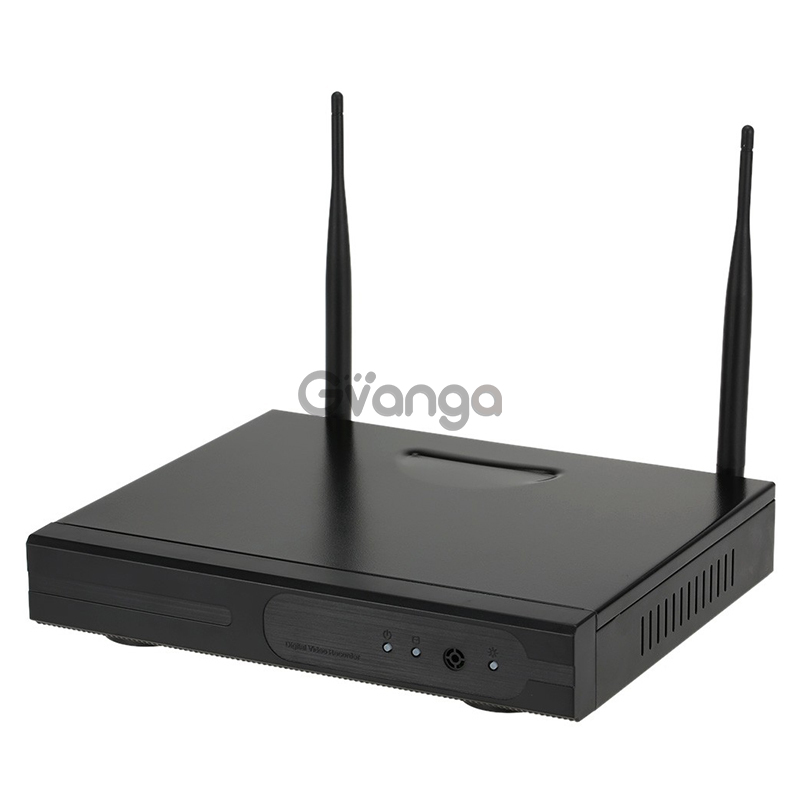

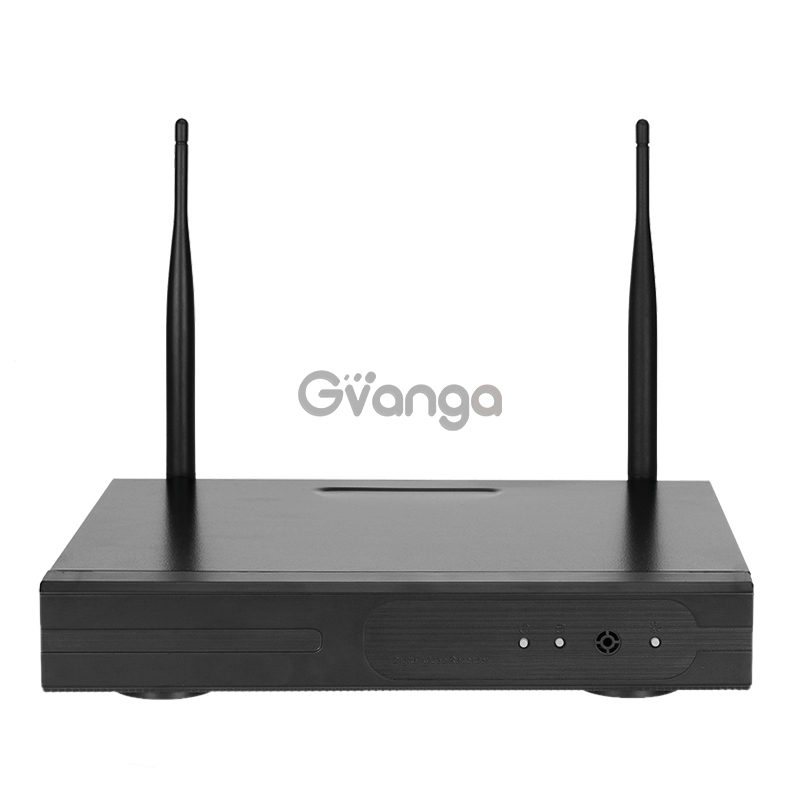

NVR

• Operating System: Embedded Linux
• Video/Audio Compression: H.264
• IP Video Input: 4 CH
• Specification Synch-playback: 4 CH
• AV CODEC Video Resolution: 720P, D1, CIF
• Output: HDMI (1CH) Resolution: 1024x768, 1280x1024, 1440x900, 1080P; VGA (1CH) Resolution: 1024x768, 1280x1024, 1440x900, 1080P
• Record Mode: Manual, Timing, Motion Detection, Triggering Alarm
• Frame by Frame Playback Mode: Forward, Backward, Play Normally
• Pattern Playback (Channel): 4.0
• 3TB HDD Support
• Mobile Phone Support
• Application Supports: Local and Remote Playback, Recording Locally, Browse Video, Remote Setup
• APP: Eseecloud
• Wi-Fi 802.11b
• Power: DC 12V 2A
• Woking Temperature: -10 to 55 Degree Celsius
• Working Humidity: 10% to 90% RH

Connectivity

• Protocol: UPnP (Play and Plug), SMTP (Email Service), PPPoE (Dial-up), DHCP (Automatically obtain an IP address)
• Support Mobile Phone Access: Android 4.0, iOS 6.0 and above

Camera

• Resolution: 720P (1280x720) 16:9 High Defination
• Image Compression: H.264
• S/N Ratio: About 39.1dB
• Video Resolution (Main Stream): 720P (1280x720), VGA (640x360)
• Frame Rate: 25fps
• Alarm: Motion Detection
• Detection Area: Support 4 Detection Areas
• Alarm Notification: Email Snapshot Notification, FTP Snapshot Upload
• Environment: Outdoor
• Power Supply: Input: 110 to 240V 50/60Hz; Output: DC 12V 4A
• Working Temperature and Humidity: -10 to 50 Degree Celsius, 30% to 80% RH
• Storage Temperature/Humidity: -20 to 60 Degree Celsius, 20% to 90% RH
• Waterproof Rating: IP66
• Wi-Fi 802.11b

Camera Lens

• Image Sensor: 1/4 Inch Progressive Scan Sensor
• Lens: 4.0mm
• Viewing Angle: 75 Degrees

Camera Night Vision

• Filter Switch: IR cut filter auto-switch automatically
• Infrared Light: IR LED lights (6 IR LEDs)
• IR Distance: 20 to 30 Meters
• Min LUX: 0.1 Lux (Color:), 0.01 Lux (B/W)

Camera Connectivity

• Basic Protocol: ONVIF 2.0 (Backward Compatible)
• OS Supported: Microsoft Windows XP, Vista, Win 7
• Browser: IE6.0 and above (OCX plug-in), Google Chrome, firefox (VLC plug-in)
• Online Visitor: Support 4 visitors at the same time
• IP Mode: Dynamic IP address, Static IP address, Support WPS Client access without SSID
• DDNS: P2P, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, PPPoE, SMTP, NTP, UPnP
• Ethernet: RJ45, WIFI 802.11b/g/n

NVR Ports

• DC IN
• VGA Out
• HDMI Out
• USB
• RJ 45
• HDD (Up to 3TB)

Camera Ports

• DC IN
• RJ 45
• Antenna

Dimensions

• NVR dimensions: 259 x 233 x 46mm (L x W x D)
• NVR weight: 715g
• Camera dimensions: 167 x 65 x 63mm (L x W x D)
• Camera weight: 397g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• NVR
• 4 x IR Camera
• USB Mouse
• 5 x Power Adapter (1 x NVR Power, 4 x Camera Power)
• 5 x Camera Antenna
• Cable
• Cable Cover
• 4 x Screw Pakages
• User Manual
