4 Channel 1080p “Sentinel Pro” NVR Kit

At a Glance...

• 4 Channel ONVIF complaint NVR Kit is your comprehensive security solution
• Plug and Play, POE network cameras makes for a quick and easy setup
• 4 Channel HD playback and HDMI output for a clear view
• Mobile surveillance support for smart phones

This standalone 4 Channel full HD 1080p NVR Kit brings a comprehensive security solution. It features fantastic video output, easy installation, mobile surveillance support and up to 4TB of storage support.

“Sentinel Pro” Comprehensive Surveillance System

Security is one area where you certainly don't want to cut corners, this premium quality system is easy to install and will reward you with high definition video, motion detection, alarm notification as well as mobile surveillance, which will let you view the cameras any time right from your Smartphone or tablet (Using Goolink App ), brining you ultimate peace of mind.

Security in full HD 1080p

The Sentinel Pro’s 4 indoor security cameras offer 1080p recording and are perfect for indoor use, the metal housing ensures they are suitably protected against vandalism and tampering while a IR LED array offers up to 20 meters of night vision support so you have HD surveillance both night and day.

With 1/2.8 inch CMOS sensors the cameras have 1920x1080 resolutions and a 600degree viewing angle that can be recorded at 30fps so you won’t miss any details. Set up alarm notification through the motion detection feature and you can have snapshot notifications sent to you email or commence recording when the restricted areas are entered.

H.264 video compression allows recorded video to be compressed to a fraction of the size so as you can make the most of your storage space and the NVR’s SATA port lets you add a HDD with up to 4TB or storage for plenty of video archiving.

PoE for a Quick, Easy Installation

With Power over Internet (PoE), its quick and easy to install the cameras as they only require a single Ethernet cable to power them, this reduces the need for additional power adapters and removes the necessity of placing your cameras near power sockets or extensive cabling work. This 4 camera NVR kit with its clean and simple setup brings you the freedom to mount the cameras wherever you wish and makes the system more versatile. This “Sentinel Pro” 4 Channel NVR Kit comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale security systems

Manufacturer Specifications

NVR

• Operating System: Embedded Linux
• Model Number: N4/1U-POE
• Image Code Control Image code quality adjustable, variable bitstream and constant bitstream optional
• Dual Stream Each channel can set main stream and sub stream
• Video Standard: 1080P(1920×1080)30fps, 960P/(1280×960), 720P(1280×720)30fps
• Monitoring Image Quality: 1080P(1920×1080), 960P/(1280×960), 720P(1280×720)
• Image Motion Detection Each screen can set mutiple detection areas and set 6-level sensitivity （IPC Support）
• Recording Playback Quality: 4ch playback in 4ch 720/960P mode, 1ch 1080P playback in 1/4ch
• Region Cover Every channel: can set 4 cover regions（IPC Support）
• Recording Mode Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
• Backup Way: Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
• Operation Way Mouse
• Local Login User name and password
• Recording Storage Local HDD, network
• Audio Input 4ch network audio input
• Video Output 1ch VGA+1ch HDMI
• Audio Output 1ch RCA Output
• Power: DC48V 2A
• Power Consumption: Up to 70W（without HDD）
• Working Temperature: -10 to 55 Degree Celsius
• Working Humidity 10% to 90%
• Installation Way: Desktop Installation

POE IP Camera

• Image Sensor: 1/2.8 Inch 2 MP CMOS color
• Minimum illumination: 1.0 lux
• Resolution: 1920x1080
• Image Compression: H.264 H.264 video coding; support dual-stream, AVI format, support adjustable stream: 0.1M to 6Mpbs
• Video Resolution: main stream 1920x1080, SUB stream: 640×360, 320×240
• Frame Rate: 1 to 30 fps
• Power: DC12V/1A  5W
• Operating Temperature: -10 to +50 Degree Celsius
• Operating Humidity: 10% to 80%

Alarm

• Alarm: Motion Detection
• Detection Area: Support 4 Detection Areas

Network

• Basic Protocol: RTSP/ FTP/ PPPOE/ DHCP/ DDNS/ NTP/ UPnP etc.
• OS Supported: Microsoft Windows XP/Vista/windows7
• Online visitor: Support 2 visitors at the same time
• IP mode: Dynamic IP address, static IP address, Supporting WPS (Wi-Fi Protected Setup)Client do not need to know the SSID and security keys or pass phrases when connecting WPS-enabled devices
• DDNS: Onvif 2.1
• Ethernet: RJ45 Ethernet interface, 10/100M
• APP support: Android, iPhone, Windows mobile

Connectivity

• Dual stream network transmission, for a variety of network environments
• Support P2P mobile phone monitoring (compatible iPhone / Android)
• Support Onvif
• Support POE
• Support WiFi
• System Structure: Hi3516C, 16M FLASH, 128M DDR3, 32-bit DSP
• Support WEB configuration, real-time video transmission, IO alarm linkage end storage, front storage playback/ download
• Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone monitoring (Iphone, Android ), through service “through clouds” P2P and provide complete development kit SDK

Camera Lens

• Lens: F1.2
• Image Sensor: 1/2.8 Inch
• Viewing Angle: 60 Degrees

Night Vision

• Filter Switch: IR Cut filter
• Infrared Light: 1 IR LED Array
• IR Distance: Up to 20 Meters

Memory

• SATA Hard Disk Drive Slot up to 4TB (HDD Not Included)

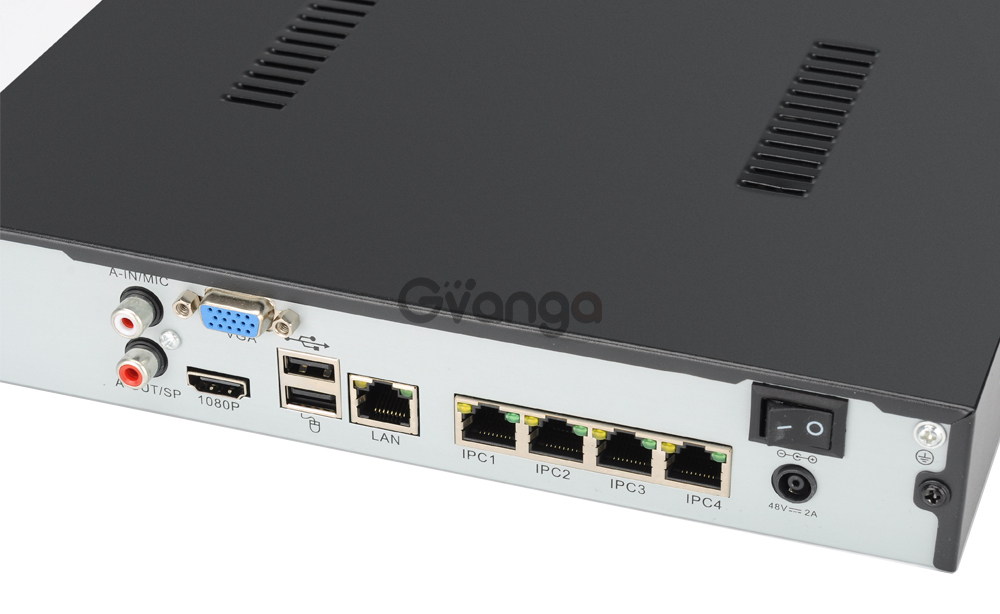

DVR/NVR Ports

• 4x IPC
• DC IN
• Audio Output
• Audio Output
• RJ45
• 3x USB
• VGA
• HDMI
• SATA HDD Port

External Ports Video Input

• 4×(1280X720) +sub[960x576]+4Ref.+4Play 4ch 1.0MP IP Camera
• 4×(1280X960) +sub[960x576]+1Ref.+4Play 4ch 1.3MP IP Camera
• 4×(1920X1080)+sub[960x576]+4Ref.+1Play 4ch 2.0MP IP Camera
• 1×(1920X1080)+sub[960x576]+4Ref.+1Play 1ch 2.0MP IP Camera

Languages

• German, English, Spanish, French, Italian, Portuguese (Brasil), Turkish, Russian, Chinese (Simp), Chinese (Trad)

Dimensions

• DVR/NVR dimensions: 260 x 219 x 45 mm (L x W x D)
• DVR/NVR weight: 816g
• Camera dimensions: 186 x 69 x 69 mm (L x W x D)
• Camera weight: 378g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• DVR
• 4x IP Camera
• 4x Power Adapter (Camera)
• 2x CD
• 4x Cable Cover
• 4x Screws + Hex Tool
• Power Adapter (NVR)
• User Manual
• Mouse
