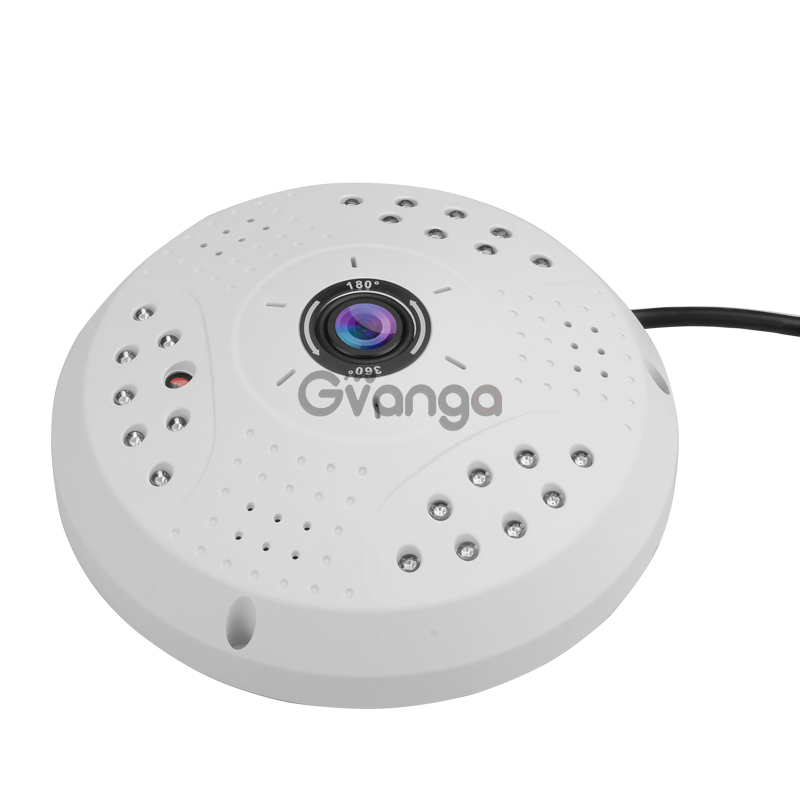

360 Degree Fisheye IP Camera

At a Glance...

• Keep an eye on your home or office with this 3MP Fisheye Camera
• Watch your video content remotely on a computer or mobile phone
• Get rid of blind spots thanks to the 360 degree wide angle lens
• Make the IP camera part of your security system with the ONVIF support

Whether you want to keep a closer eye on a building, office or storage area, a wide angle IP camera can be your reliable watchman on the spot. Coming with a 360 degree panoramic view and 3MP resolution, this small and discreet device is all you need to stay in the know.

360 Degree Wide Angle + 3MP Resolution

The Panoramic IP camera comes with an ultra wide angle lens giving you a 360 degree view of the selected area when mounted on a ceiling, and a 180 degree view when fixed onto a wall. This means that with the camera installed, you can cover a much wider ground - perfect for warehouses, parking lots, stores, stadiums and more.

You will have a clear view of what’s happening with the 3MP resolution and never miss out on important details. Even when it gets dark, the IP camera will give you a full view of the surroundings with its IR Cut and night vision of up to 15 meter thats will penetrate into the darkness.

Remote Play Back + Wi-Fi + POE

With this wide-angle IP cam, you can set up your network to view the recordings remotely as it happens or watch previously recorded footage. Use Internet Explorer to view the videos online or watch them on your phone.

A nice highlight of the 360 degree IP camera is POE – Power Over Ethernet. With this feature, your camera can be powered up directly through the cable you use for its internet connection, reducing the need for additional wires and saving valuable time during setup. Thanks to the DSP (digital signal processor), the IP cam will filter and compress images before sending them over – making it more power-efficient. All in all, with the 3MP Fisheye camera, you have everything you need to know what’s happening in remote locations.

The 360 Degree Fisheye IP Camera comes with 12 months warranty. Brought to you by the leader in electronic devices as well as wholesale IP cameras.

Manufacturer Specifications

General

• Mobile Phone Support
• On-Board Storage: External 64GB Micro SD card
• Remote Playback
• Motion detection
• ONVIF
• Front-end Video: Support TF card record
• Local Video
• Timer Recording
• POE Power Supply

Video

• Main processor: High-performance DSP (TI solution)
• Compression Format: H.264, M-JPEG
• Video Frame Rate: Main Stream: 2048x1536/20fps, Sub stream: 352x288/20fps
• Video Resolution: Main stream: 2048x1536
• Electronic shutter: 1/25 to 1/10000 second
• Image Sensor: 1/2.5 Inch Min Illumination progressive scan CMOS
• Horizontal Resolution: 3 Megapixels
• Lens: 1.56mm
• Viewing Angle: Ceiling Mount: 360 Degrees, Wall Mount: 180 Degrees
• LUX: 0.01Lux/f1.2 (0 Lux When IR ON)
• SNR: About 52dB

Night Vision

• Day/Night Mode: ICR IR filter automatically switches
• Night Vision: 23 pieces LED lights
• IR Distance: Up to 15 Meters

Alarm

• Alarm: Motion Detection
• Trigger Capture
• Alarm capture

Network

• Network interface: RJ45, 10/100MB Ethernet
• Protocol: TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, NTP, UPNP, RTP/RTSP
• Wireless: Wi-Fi 802.11 b/g
• Common Functions: Anti-flicker, dual-stream, mirroring, multi-level user

System

• System Requirement: Windows
• Compatible Browsers: IE

Others

• IP-rated: IP65
• TVS 4000V Lightning protection, anti-surge, anti-wave
• Operating Temperature: -20 to 70 Degree Celsius
• Power Supply: DC 12V (+/-10%)
• Power Consumption: Up to 9W

Dimensions

• Main Product Dimensions: 149 x 149 x 50 mm (L x W x D)
• Main Product Weight:  454g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• IP Camera
• CD
• Screws
• User Manual
