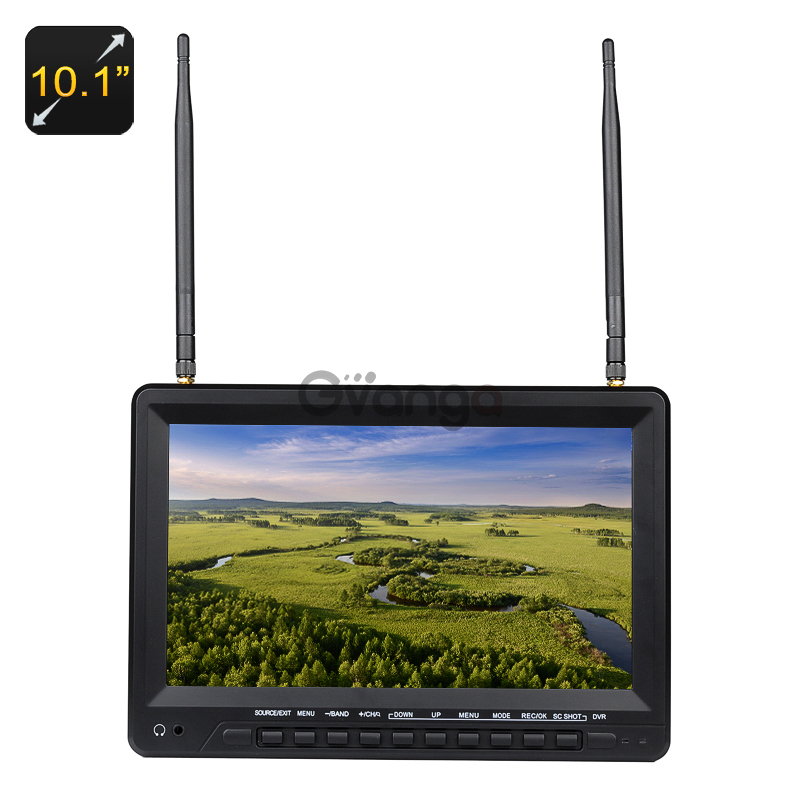

10.1 Inch FPV Monitor For Aerial Photography

At a Glance...

• The 10.1 inch FPS monitor is perfect for outdoor aerial photography
• View your footage right there on a 1024x600 TFT LCD screen
• 500cd/m2 will ensure a clear picture in any weather conditions
• Conveniently comes with a foldable sunshade for sunny days

Get the most of aerial photography with the 10.1 inch FPV monitor, featuring a dual receiver, motion detection, cycle recording, lock loop and more.

Great Monitor For Aerial Photography

With more and more drones piercing the sky these days, we are closer than ever to learning what it’s like to see the world from under a bird’s wing.

If you are a fan of aerial photography (or maybe just considering taking up the hobby) – you’re in luck. You can now make the experience even better with a convenient and portable 10.1 inch monitor, helping you review your aerial footage as it’s being made.

The monitor comes with 1024x600 resolution, so that you can clearly see everything happening within the frame. Thanks to the 500cd/m² brightness, you will always have lots of light, no matter how dull the outside weather is. However, the 10.1 inch FPV monitor also comes with a foldable sunshade – just in case it gets too sunny for you.

You can store the pictures and videos right on your portable screen, thanks to the support of up to 32GB on a TF card. With HDMI Out, you can then easily review the footage on the big screen, by simply hooking up the monitor to your TV.

Thanks to the built-in 2200mAh battery, you will have up to two full hours of play time with the monitor outside. With a great set of recording features, like motion detection, cycle recording and more, the 10.1 inch FPV monitor is a must-have for any budding or experienced aerial photographer.

The 10.1 Inch FPV Monitor for Aerial Photographycomes with 12 months warranty. Brought to you by the leader in electronic devices as well as wholesale FPV monitors.

Manufacturer Specifications

General

• Panel Size: 10.1 Inch TFT LCD
• Dot Resolution: 1024x600
• Dot Pitch: 0.05(W) × 0.15(H) mm
• Aspect Ratio: 16:9
• Brightness: 500cd/square metre
• Contrast Ratio: 500:1
• Backlight: LED
• Response Time: 5ms
• Motion Detection
• Cycle recording
• Built in frequency and phase lock loop
• Photo Function: Take, Review, Store Pictures
• Seamless Continuous Record: No Intermittent Recording
• Viewing Angle: 75 Degree/75 Degree(L/R), 50 Degree/70 Degree(U/D)
• Support Video Format: PAL-4.43, NTSC-3.58
• Input Signals: HDMI, Video, Audio, RF
• HDMI Support Format: 480I, 480P, 576I, 576P, 720P, 1080I, 1080P(50/60Hz)
• DVR Resolution: D1 (720x576), VGA (640x480), QVGA (320x240)
• DVR Record Video Format: AVI
• RF Receiving Frequency: 5.8G broadband FM audio and video synchronization receiving
• RF Wireless Receiving Sensitivity: Typical value -90
• Frequency Stability: +/- 100ppm
• TF Card: Support up to 32GB
• Built-in Battery: 7.4V 2200mA
• Continuous Usage Time: About 2 Hours
• Input Voltage: DC 9 to 18V
• Power Consumption: Up to 13W
• Working Temperature: -20 to 50 Degree Celsius
• storage Temperature: -30 to 65 Degree Celsius

Ports

• Mini USB
• DC IN
• Video OUT
• Video IN
• Audio IN
• HDMI IN
• 3.5mm Audio Jack
• Micro SD Card Slot

Language

• English, Spanish, Portuguese, French, Dutch, German, Chinese (Simp), Japanese

Dimensions

• Main Product Dimensions: 260 x 188 x 36 mm (L x W x D)
• Main Product Weight: 472g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• FPV Monitor
• Wireless Antenna
• 2x Antenna
• Power Adapter
• User Manual
• Velcro Pad
• 2x Thumb Screw
