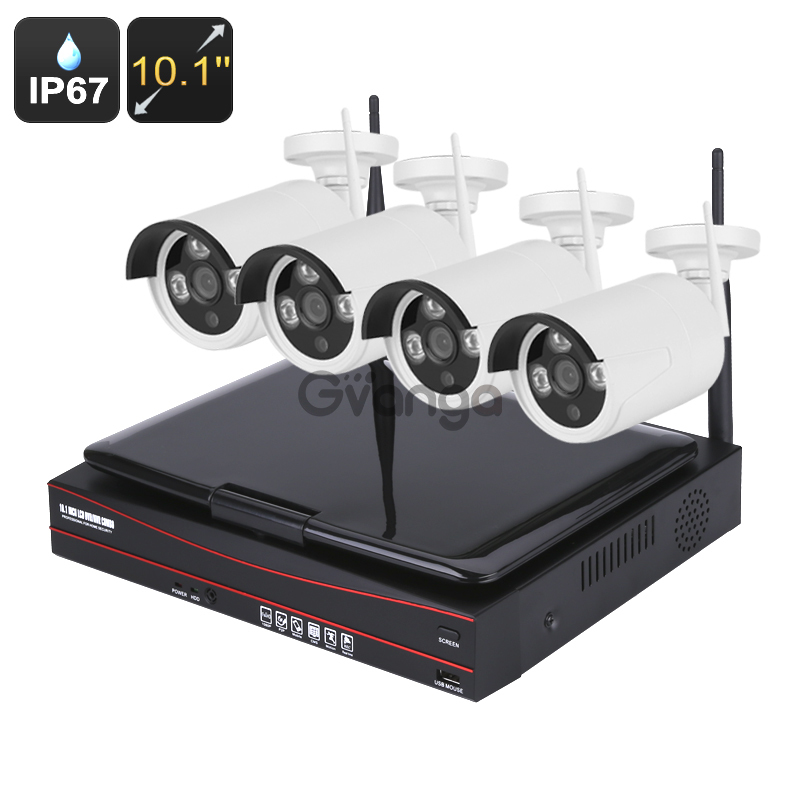

Wireless 4 Channel NVR Kit

Key Features...

• 4 Channel NVR Kit with mobile support lets you monitor all events locally or remotely
• 4 HD 720P waterproof cameras for use indoors or out
• Set multiple detection areas for each camera for great security
• wireless cameras and NVR ensures a quick versatile setup for your home or business

Wireless 4 Channel NVR Kit

This 4 channel NVR Kit with Wireless cameras is fully comprehensive security system that's easy to set up and brings HD surveillance to your home or workplace. This all in one package has just about everything you need for state of the art security.

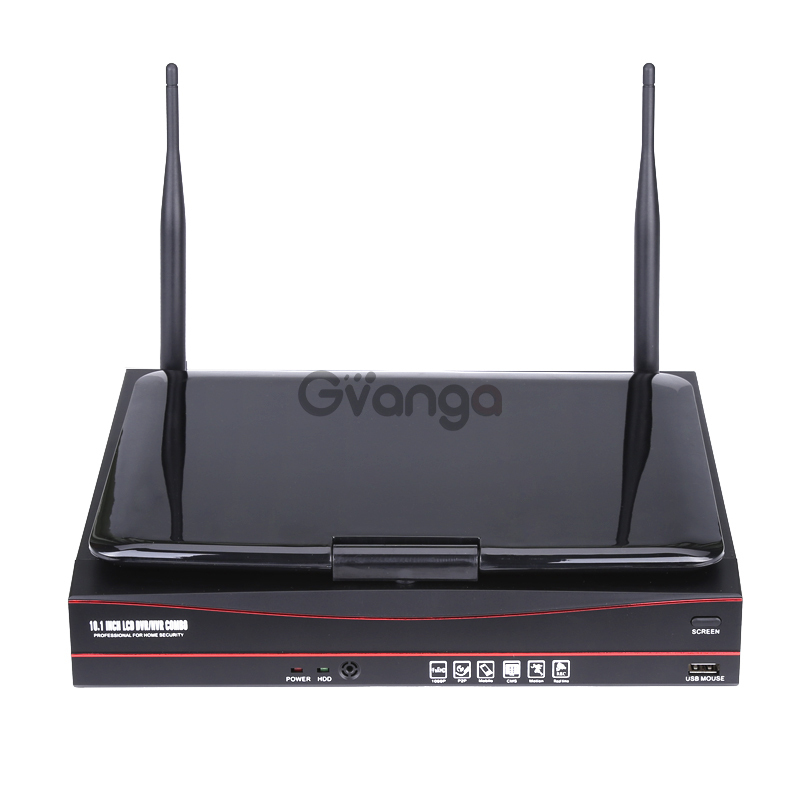

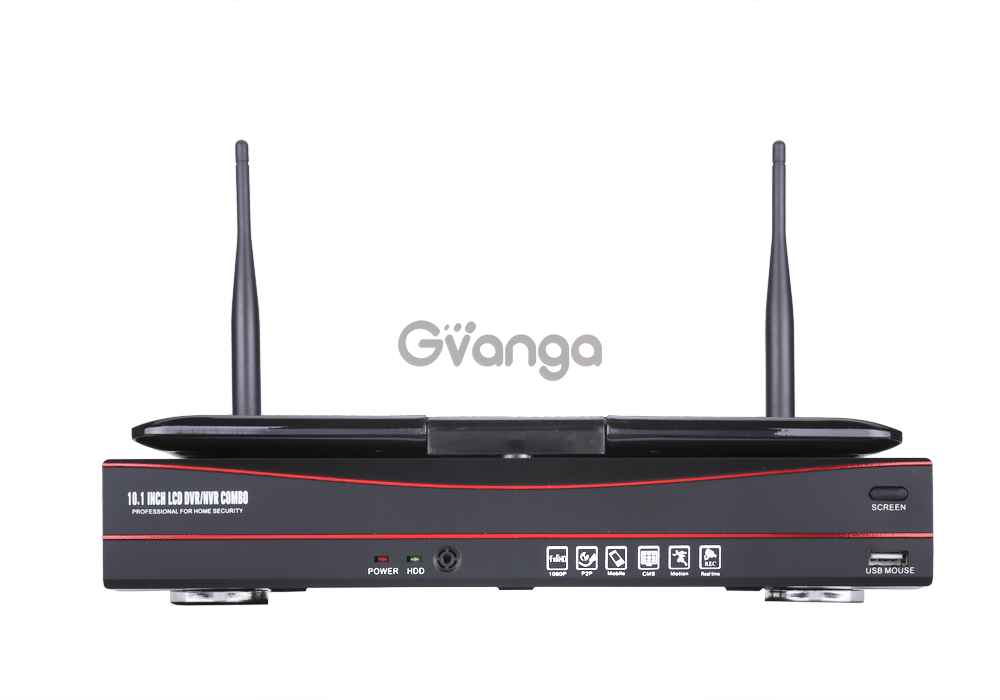

The NVR itself has a 10.1 inch monitor and will display the live feed from any or all of the 4 cameras. There are no network cables required to connect each camera as with two large Wi-Fi antennas on the NVR the Wi-FI cameras can easily be connected wirelessly so you can say goodbye to the messing with cables.

With the monitor able to rotate a full 360 degree and tilt through 180 degrees you can place the NVR just about anywhere, be it on a desk in your office, security room or mounted on the wall bring great versatility. An HDMI output let you link in additional monitors in case you want to view the feed on a larger display and with support for a SATA HDD up to 4TB there will be no shortage of space to store all the camera footage.

Local and Remote Viewing

Being an NVR kit and with mobile phone support no less means you can access the live feed from anywhere you wish via an internet browser or the dedicated Eseecloud mobile applications that is available for Android and iOS devices. Simply download the App by scanning the QR code and you will have instant easy access to the system remotely, whenever and wherever you may be. With event recording and email notifications you'll always be fully appraised of all goings on.

Waterproof HD IP cameras

Coming with 4 HD 720P wireless IP cameras you can establish a security system that is second to none. Sporting an IP67 waterproof rating the cameras are suitable for use indoors and out and function clearly down to 0.1 lux illuminations. Having a 90-degree viewing angle these 3.6mm lens cameras can cover a substantial area and the IR LEDs offer up to 15 meters of night vision so your protected 24/7.

Having the ability to set up recording schedules and supporting a motion detection with 4 independent areas available to be set for each camera means you can cover all the access points and important areas, such as cash registers and storage rooms to safeguard your business.

This Superb 4 Channel NVR kit comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale surveillance systems and security kits.

Manufacturer Specifications

General

• 4CH NVR
• Compression: H.264
• NVR Resolution: 1024x768，1366x768，1440x900，1920x1080
• 10.1 inch Digital LCD (Resolution: 1024x600)
• Motion detection
• Video Systems: PAL/NTSC (Auto)
• Record Frame Rate Quality: 25FPS (D1/CIF PAL), 30FPS (NTSC)
• Record Mode: Manual, Schedule, Motion Detection
• ONVIF
• Support System Microsoft Windows 2000,Microsoft Windows XP, Mobile, Mobile Pocket, iPhone iOS, Windows7, Android
• Record Occupied Size: Video: 56 to 900M/Hour, Audio: 28.8M/Hour
• Hard Disk Port: 1x SATA , Maximum 4TB (Not Included)
• WIFI 802.11b/g/n
• Network:10M / 100M Ethernet
• IP mode: Dynamic IP address, Static IP address, Supporting WPS (Wi-Fi Protected Setup)
• Power Supply: DC 12V 2A
• Power: 20W (NO HDD)
• Working Temperature: 0 to 50 Degree Celsius
• Storage Temperature: -20 to 70 Degree Celsius

Connectivity

• Ethernet: RJ-45 Interface 10/100Mbps
• Network Protocol: P2P, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
• IP mode: Dynamic IP address, Static IP address, Supporting WPS (Wi-Fi Protected Setup)
• WIFI 802.11b/g/n
• Mobile Phone Browsing (Android 4.0 and iOS 6.0 above)
• APP： Eseecloud

Camera

• Image sensor: 1/4 Inch progressive scanning CMOS 1.3 Mega Pixel
• Resolution: 1280x960
• Image Compression: H.264
• Video code rate: 1Mbps to 6Mbps
• Lens: 3.6mm fixed Lens
• Viewing Angle: 90
• Frame rate: 30FPS
• Video Resolution: 720P(1280x720)
• Waterproof Rating: IP67
• Power supply Input: 100 to 240V, 50/60Hz; Output: DC 15V, 1A
• Working Humidity: up to 95%

Camera Night Vision

• Filter switch: IR cut filter auto-switch automatically
• Infrared Light: 3 IR LEDs
• Minimum illumination: 0.1 Lux@F1.2
• Night Vision Range: up to 15 Meters

Alarm

• Alarm: Motion Detection
• Detection Area: Each Camera Supports 4 Detection Areas
• Alarm Notification: Email Snapshot Notification, FTP Snapshot Upload, Event record to HDD

Network

• Basic Protocol: ONVIF 2.0(backward compatible)
• OS Supported: Microsoft Windows XP/Vista/windows7
• Browser: IE6.0 and above(OCX plug-in), Google Chrome, firefox(VLC plug-in)
• Ethernet: 10Base-T/100base-TX Mobile
• Support Mobile phone access: Android 4.0 and iOS 6.0 above
• Port: RJ45

NVR Ports

• SATA Hard Disk Drive Slot
• HDMI Out
• 2x SB
• RJ45 10M/100M Ethernet interface
• DC IN

Languages

• English, Simplified Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Hungarian, Persian, Dansk, Slovakian, Greek, Vietnamese,

Dimensions

• NVR dimensions: 279 x 255 x 65 mm (L x W x D)
• NVR weight: 1475g
• Camera dimensions:174 x 63 x 63 mm (L x W x D)
• Camera weight: 335g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• NVR
• 4x IP Camera
• NVR Power supply
• 4x Camera Power supply
• Mouse
• CD
• Screws
• Network Lead
• 4x Camera Antenna
• User Manual
