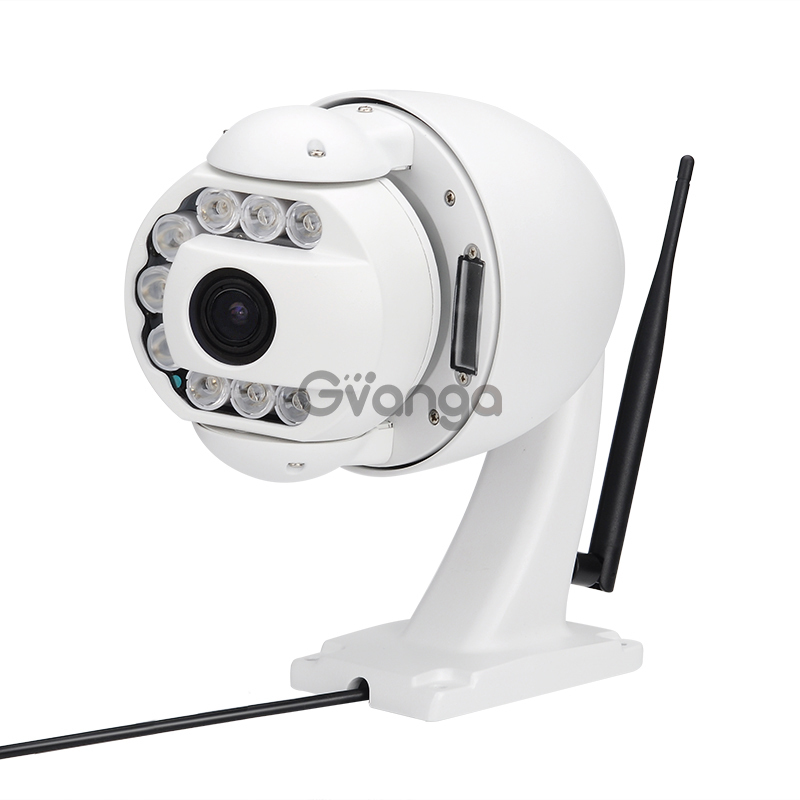

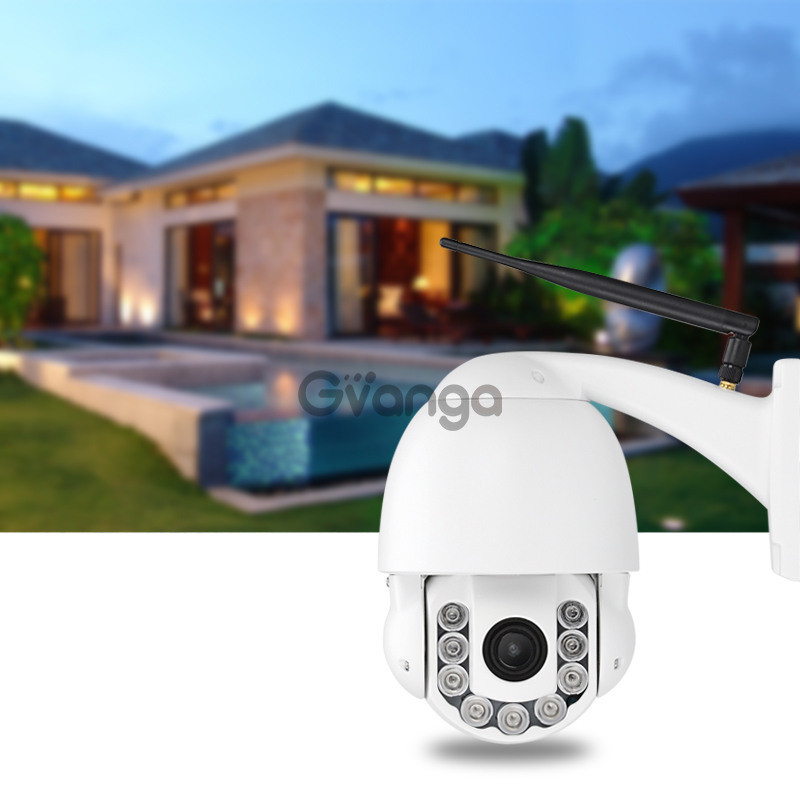

PTZ Dome Outdoor IP Camera

Key Features...

• Outdoor dome PTZ Camera allows for quick and easy setup with Plug and Play
• 4x optical zoom along with pan and tilt functions lets you cover all the angles with one camera
• Motion detection and 60m night vision can catch any intruders
• Crisp images and clear detail with at 960p resolution thanks to a 1/3 inch CMOS digital image sensor

Plug and Play PTZ Outdoor IP Camera

If your looking to step up your home security you cant go wrong with the brand new “Arch Dome II” PTZ IP Camera. Recording in 960p quality at a frame rate of 25FPS, not a single detail will escape this extremely advanced camera.

To get a more detailed view, you will be able to zoom in up to 4 times using the 4x optical zoom. Even better, installation couldn’t be easier as this IP speed dome camera automatically configures itself. Once installation has been completed, you will be able to access the live stream of the camera by simply logging in from anywhere using your Android or iOS smartphones. That way you always have a view of what's going on when you need it. Also you can connect via your computer so there is no excuse to not see what is happening.

Thanks to the 9 array IR night vision LEDs, the Arch Dom II can record crystal clear video at night and this up to a range of 60 meters.

Motion Detection, Pan and Tilt, IP66

This full metal IP camera is constructed to survive in the harshest environments and can be used both indoor and outdoor as it is waterproof. Rotating 355 degree around its axis and 90 degree up and down, the “Arch Dome II” has an extremely wide field of view and will be able to catch the movement of intruders thanks to its motion detection feature.

This camera is a perfect home or office security camera. Finally for making sure you have plenty of footage, this security IP camera uses H.264 to format, which is brilliant for keeping high quality video in low bit rate files.

This Plug and Play PTZ Dome Outdoor IP Camera 'Arch Dome II' comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale IP cameras.

Manufacturer Specifications

General

• Compression Format: H.264, JPEG
• Frame Rate: 1 to 25 FPS
• Bit Rate: 307Kbps to 8Mbps
• Resolution: Main Stream: 960P (1280x960), 720P (1280x720), D1 (704x576); Minor Stream: D1 (704x576), CIF (352x288)
• Image Sensor: 1/ 3 Inch Aptina Illumination CMOS 1.3MP
• Lens: 2.8 to 12mm (HD automatically zoom lens)
• Viewing Angle: 30 to 70 Degrees
• LUX (Min): Color: 0. 05 Lux F1.4; B/W: 0 Lux (IR on)
• Wire and Wireless
• Support Mobile Phone Access: iOS 7.0, Android 4.0 and above
• APP Name: XMEye
• Power Supply: Input: 110 to 240V 50/60Hz; Output: DC 12V 5A
• Power Consumption: 10W (Indoor), 50W (Outdooor)
• Operating Temperature: 0 to 60 Degrees Celcius (Indoor), -20 to 60 Degrees Celcius (Outdooor)
• Working Humidity: Up to 95%
• IP66 Waterproof

PTZ

• Motor: Built-in motor control
• Rotation Angle:  Horizon: 0 to 355 Degrees, Vertical: 0 to 90 Degrees
• Horizontal Speed: 0 to 40 Degree per Second
• Vertical Speed: 0 to 40 Degree per Second
• Preset: 128
• Zoom: 4x

Night Vision

• Filter Switch: IR cut filter auto-switch automatically
• Night Vision: IR LED lights (9 IR LEDs)
• IR Distance: Up to 60 Meters

Alarm

• Alarm: Motion Detection
• Detection Area: Support 4 Detection Areas
• Alarm Notification: Email Snapshot Notification, FTP Snapshot Upload



Network

• Protocol: ONVIF 2.0 (Backward compatible)
• Wireless: Wi-Fi

• Online Visitor: Support 13 Visitors at the same time
• IP Mode: Dynamic IP address, Static IP address, Supporting WPS (Wi-Fi Protected Setup)
• DDNS: HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, PPPOE
• Ethernet: 10 Base-T/100 Base-TX Mobile

System

• System Requirement: Microsoft Win XP, Vista, Win 7, Win 8
• Browser: IE8+, Chrome18+, Firefox5.0+, Safari5.02+

Ports

• DC in
• Anttena Port
• RJ45

Dimensions

• Main Product Dimensions: 120x95x105mm (L x W x D)
• Main Product Weight: 268g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Change Log

• 11th October 2016, Removed SD Card Slot

Package Contents

• IP Camera
• Power Adaptor
• Anttena
• Screws Package
• Power Lead
• User Manual
• CD
