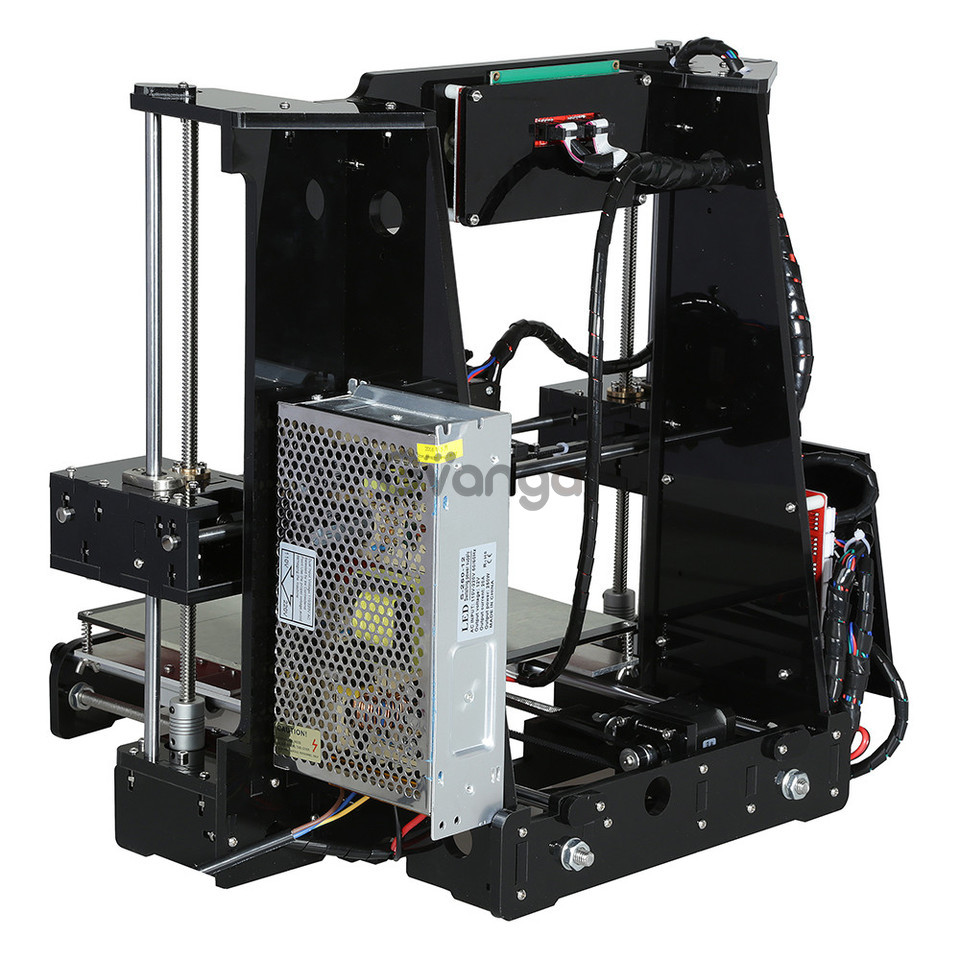

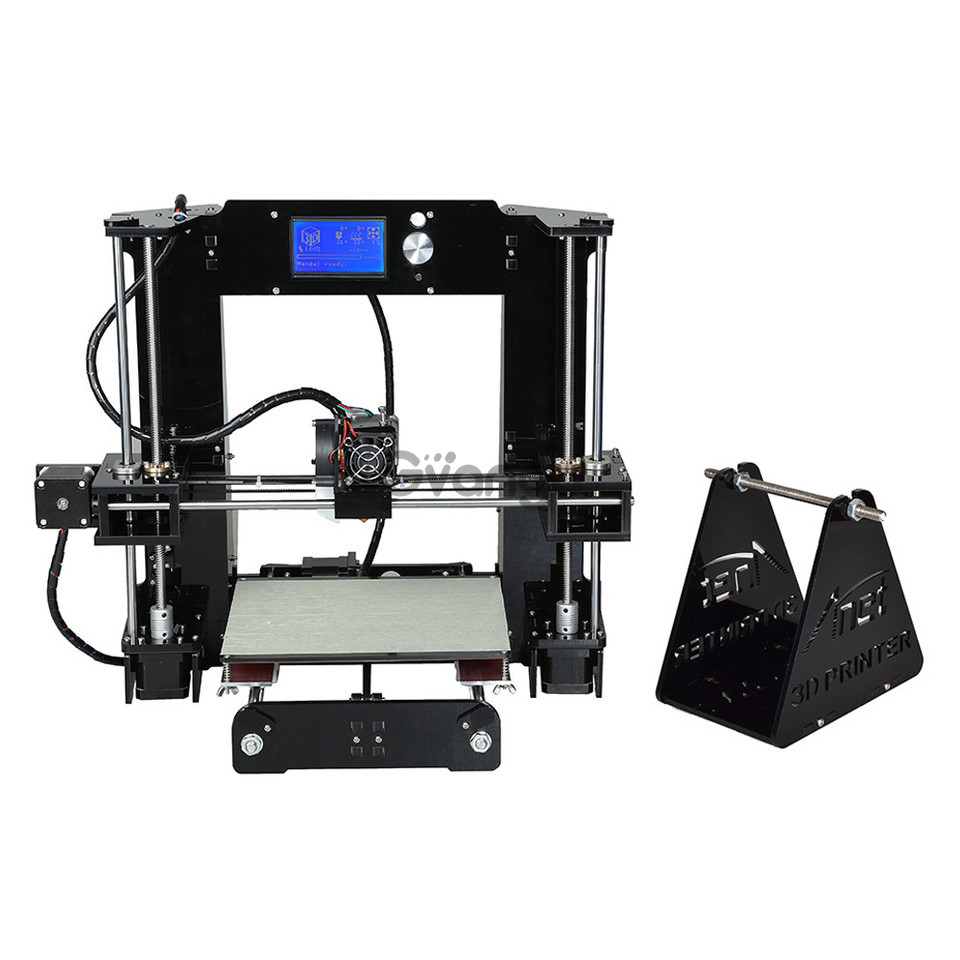

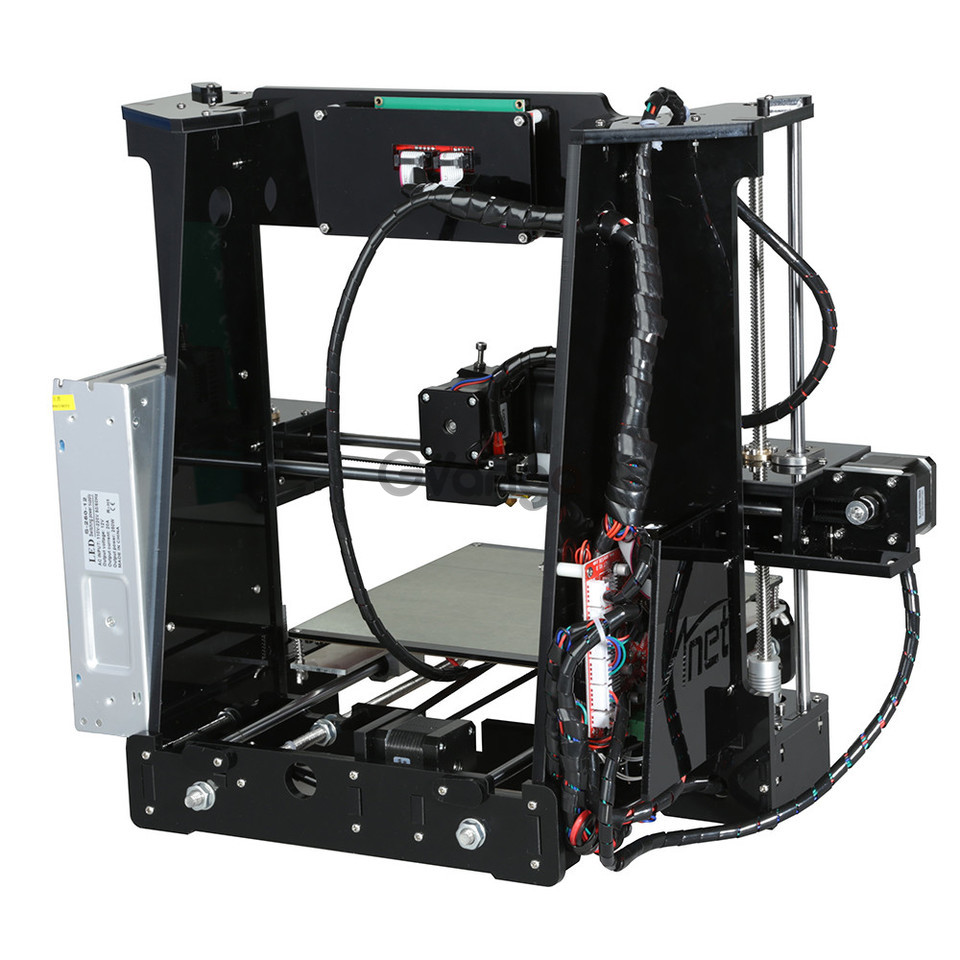

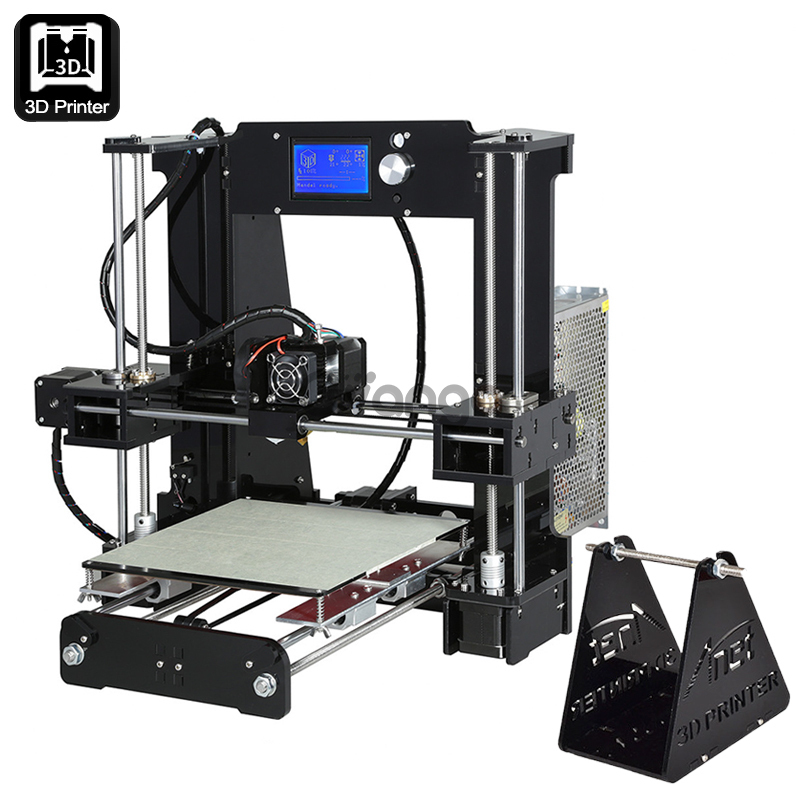

ANET A6 DIY 3D Printer Kit

Key Features...

• Acrylic and metal frame ensures a long listing sturdy construction for more accurate printing
• Comes with all the assembly tools required as well as full instructions
• Supports STL and G-Code 3D model files with thousands of freely available online designs
• this DIY 3D Printing kit is suitable for artists, designers, hobbyist and classrooms alike

ANET A6 DIY 3D Printer Kit

The DIY 3D printer kit is the perfect and affordable way for to get into 3D printing. The ANET A6 DIY 3D printer is can be assembled without any prior technical knowledge. To make life easy all the connections are ready for plug and print meaning there is no soldering or crimping of cables and wires and to help you there are full instructions on the SD card that's included with the kit.

With a respectable 220x220x250 mm printing volume this 3D printer has an acrylic and metal frame ensuring a study structure that allows for precision printing to an accuracy of 0.1 to 0.4 millimeters.

The heated print nozzle will reach a maximum of 250 degrees centigrade and with an adjustable heat plate temperature from 50 to 110 degrees this printer allows you to use PLA, ABS, wood-polymer, nylon, flexible PLA and PVA filament giving you a wide choice of printing mediums to create and play with.

This 3D printer comes with the Repetier printing software, compatible with XP, Vista, Win7, Win8, Win10, Linux and Mac OS, which has tones of great online support and allows you to create or import 3D models that can be customized and printed quick and easily.

Supporting for STL (Stereo Lithography) and G-code files means you can be printing one of the thousands of freely available designs from the thousands shared online and with 100mm per second printing you will have great results in virtually no time at all.

Suitable for artists, designers, hobbyist and classrooms this DIY 3D Printing kit is for those folks who want the added enjoyment and achievement of assembling their own 3D printers, whether it’s for education or for entertainment is a great way to get kids and creative minds involved in the world of 3D printing.

The ANET A6 DIY 3D printer kit comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale 3D printers.

Manufacturer Specifications

General

• Frame Material: Acrylic + Metal
• LCD Monitor Screen
• 8-mm-thick Laser Cut Acrylic Frame
• Filament Materials: LA, ABS, Wood-Polymer, Nylon, Flexible PLA and PVA
• Filament Diameter: 1.75mm
• XY Axis Positioning Accuracy: 0.012mm
• Z Axis Positioning Accuracy: 0.004mm
• Extruder Quantity: 1
• Print Color Single Color
• Extruder Diamiter: 0.4mm (Custom Options: 0.5/0.3/0.2mm)
• Print Precision: 0.1  to 0.4MM
• Layer Resolution: 0.1MM
• Printing Speed: 100MM/S
• Maximum Print Size: 220x220x250MM
• Nozzle Temperature Recommended: 210 degrees Celsius, Maximum 250 degrees Celsius
• Ambient Temperature Recommended: around 25 degrees Celsius
• Heating Plate Temperature: 50 to 110 degrees Celsius(Adjustable)
• Heating Plate Material: Aluminum
• Data Format: STL, G-Code
• Compatible Computer OS: XP, Vista, Win7, Win8, Win10, Linux, MAC
• 3D Printing Software Repetier-Host
• Power Supply: DC 12V/20A

Ports

• USB Line In
• Power Port

Dimensions

• Main Product Dimensions: Approx  390x 470 x 390  mm (L x W x D)
• Main Product Weight: about 9000g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price ­ shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• Main support plate
• 2 x Side support plate
• Front plate
• Back plate
• Screen Back plate
• Mainboard back plate
• filament support plate
• connecting plate
• 2 x filament support plate
• 4 x Z axis motor support plate
• X axis limit switch fixed plate
• 5015 fan fixed plate
• 2 x Z axis motor fiex plate
• 2 x Support plate lock plate
• Y Axis motor fixed plate
• Y Axis belt bearing support
• Y Axis motor support
• Y Axis limit switch fixed plate
• 8 x Guide rod back up plate
• Power supply unit
• Mainboard
• 12864 LCD Screen
• 220x220x3mm Hot Bed
• Hot Bet fixed aluminum plate
• 16GB micro SD Card + Reader
• Clippers
• Spanner
• 4 x Hex Wrench
• 2X Screwdriver
• 20 x M4 bolts
• 18x M8 Nut
• 12x M8 Spacer
• 40x M3 Bolt
• 4x Spring
• 4x M3 Wing Nut
• 6x M3 Bolt
• 54x M3 Nut
• Left Z axis nut support
• Right Z axis nut support
• Extruder
• Power line of hot bed
• 1.5M power lead
• X Axis motor
• Y Axis motor
• 2x Z Axis motor
• 70Cm wire
• 3x Limit switch
• 2x t type Lead Screw
• 6 x Guide Rod
• Threaded Rod
• 5015 Fan
• 1.5M USB Cable
• 8x Pillar Washer
• 3 x R Clip
• Wind mouth
• 1.6M Belt
• 4.5M Winding pipe
• 2x Locating piece
• 4 x Linear bearing
• 10 Zip ties
