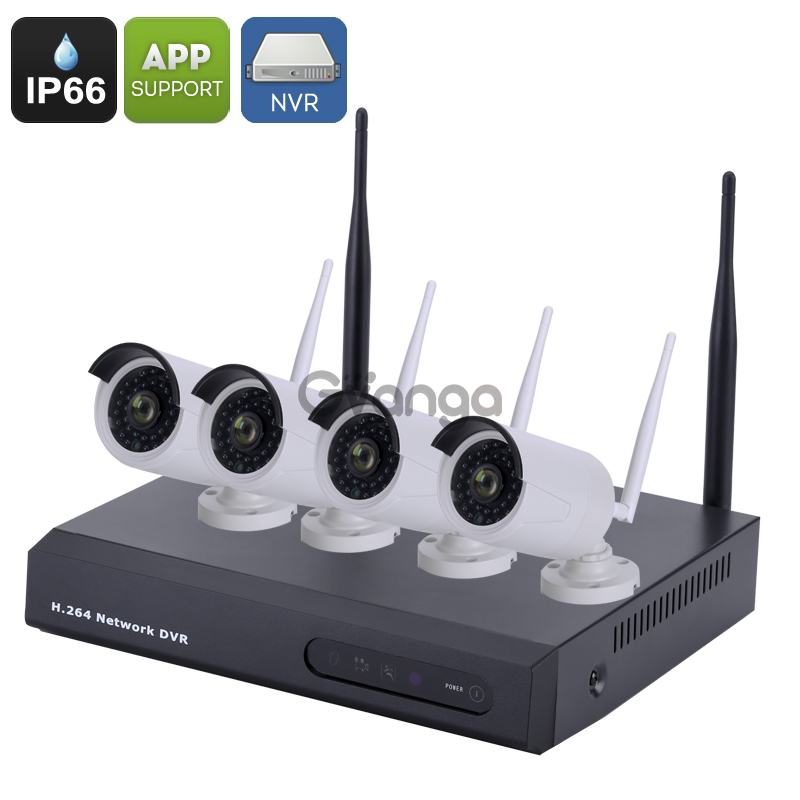

4 Channel Wireless NVR Kit

Key Features...

• NVR Kit with 4 HD 720P IP cameras has everything you need to protect your property
• IP66 Wi-Fi cameras allow for a quick and easy setup offering more versatility for your security
• Remote access, playback and viewing is all possible on the free APP for Android and iOS devices
• IR Cut and night vision brings 254 x 7 security so your always protected.

4 Channel Wireless NVR Kit

Experience professional surveillance video that leaves nothing out with this 4 channel DVR Kit that captures and records 720P video for superior picture quality that captures every detail. Each of the 4 cameras are equipped with a 3.6mm lens that can cover a 76 degree view so you need fewer cameras to cover your full property.

With motion detection and alarm recording as well as FTP snapshot uploads you can keep informed of of any incidents whenever there's movement detected. Using the iOS and Android phone app ;lets you view the footage remotely while on the go or alternatively you can log in from your computer where it's possible to replay the footage frame by frame

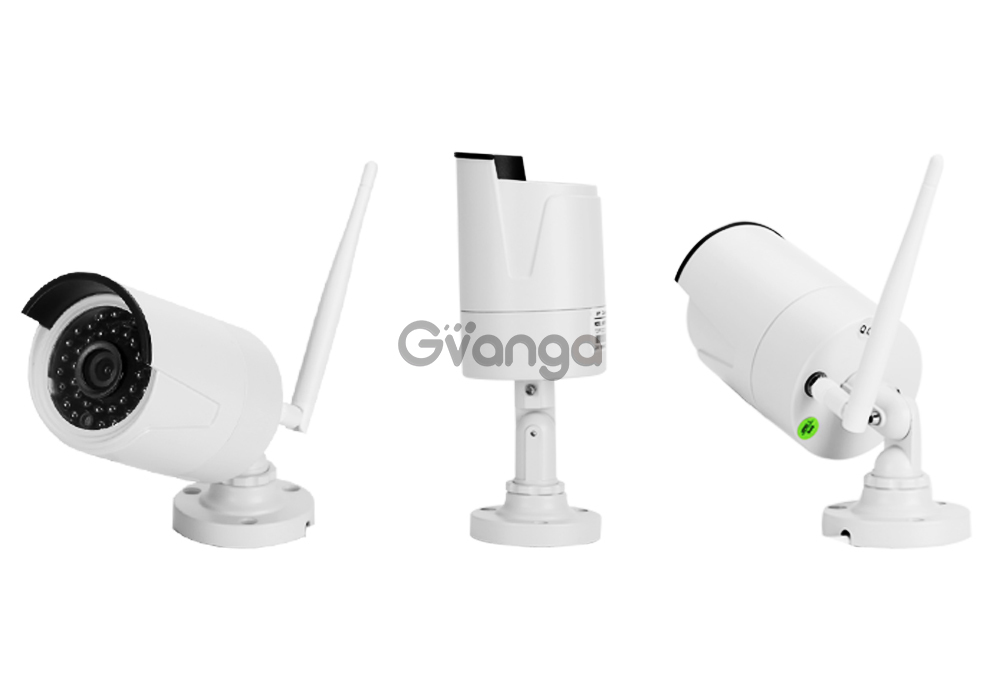

IP66 Wireless IP Cameras

Thanks to Wi-Fi connectivity this NVR kit is easy to setup as the cameras just need a simple power supply so cabling is kept to a minimum. With an IP66 rating the cameras are well protected from the elements and can be used indoors or out.

Each camera features a whopping 36 IR LEDs that are automatically activated by the IR cut when ambient light levels fall to low. All of these features means you can set the cameras up wherever you like and enjoy 24x7 security so you're always just a few clicks away from checking in on your home or business.

When it comes to storing the recorded data you can add up to 4TB or storage via the NVRs SATA port and as this surveillance systems adopts H.264 compression meaning the recorded data takes up less space without compromising the quality of your footage.

This 4 Channel NVR Kit with IP cameras comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale security systems.

Manufacturer Specifications

General

• Operating System: Embedded Linux
• Supports Remote View with Mobile Phones (Android 4.0 and iOS 6.0 above)
• Control Mode: USB mouse
• Resolution: Main stream: 1280x720, 720x576, 720x480, 640x480 Minor Stream: 640x480, 480x360, 352x288, 320x240, 176x144
• Video/Audio Compression: H.264
• Record Mode: Manual, Timing, Motion Detection, Alarm
• Frame by frame playback mode: forward and back, play correctly
• Motion Detection
• Alarm: Sensor Triggered, Video Loss, HDD Error
• WIFI distance: 200meters (open area), Indoors: 20 to 30 meters
• Power supply Input: 110 to 240V, 50/60H
• Output: DC 12V, 1A
• Working Humidity: up to 95%

Connectivity

• Ethernet: 10Base-T/100base-TX Mobile
• IP mode: Dynamic IP address, static IP address, Supporting WPS (Wi-Fi Protected Setup)Client do not need to know the SSID and security keys or pass phrases when connecting WPS-enabled devices
• DDNS: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, ARP, DDNS, DNS, P2P
• OS Supported: Microsoft Windows XP/Vista/windows7
• Wi-Fi: 802.11 b/g/n
• Mobile Phone Browsing (Android 4.0 and iOS 6.0 above)
• APP: ATCloud
• Online visitor: Support 4 visitors at the same time
• ONVIF 2.0(backward compatible)

Camera

• Image sensor: 1/4 Inch CMOS 1.0 Mega Pixel
• Resolution: 1280x720
• Image Compression: H.264Farm Rate: 30FPS
• IP66 rated waterproof
• Wi-Fi

Camera Lens

• Lens: 3.6mm
• Viewing Angle: 75 Degrees
• Minimum illumination: 0.1Lux at F1.2 (color mode); 0.05 Lux at F1.2 (black and white); 0Lux (IR LED on)

Camera Night Vision

• Filter switch: IR cut filter
• Infrared Light: 36 IR LEDs
• IR Distance: up to 15M

Alarm

• Alarm: Motion Detection
• Detection Area: Support 1 Detection Areas
• Alarm Notification: FTP Snapshot Upload, Event record to HDD

Memory

• SATA Hard Disk Drive (3.5 Inch), up to 4TB (not included)

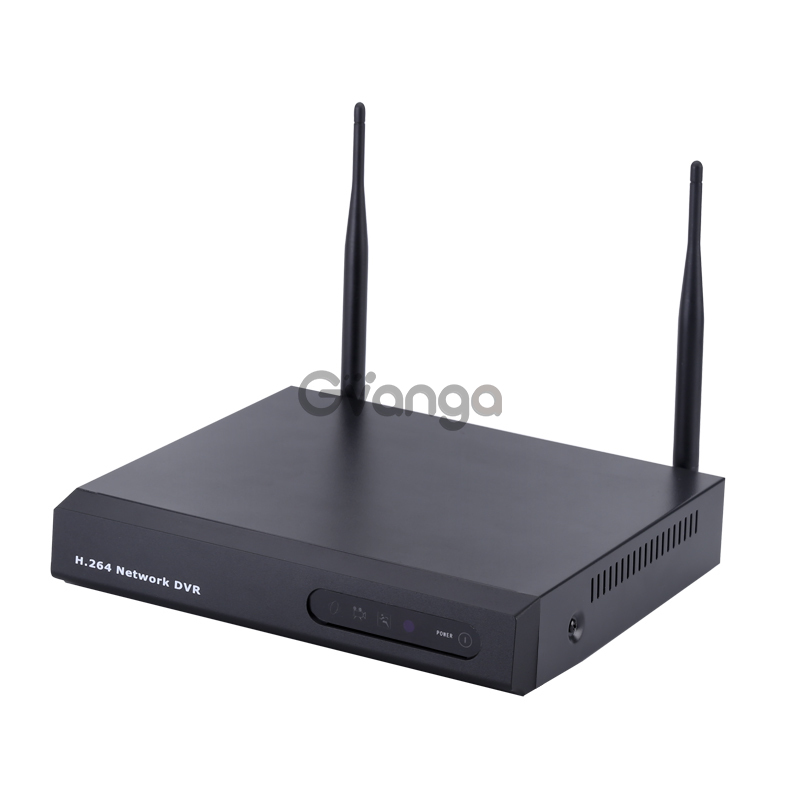

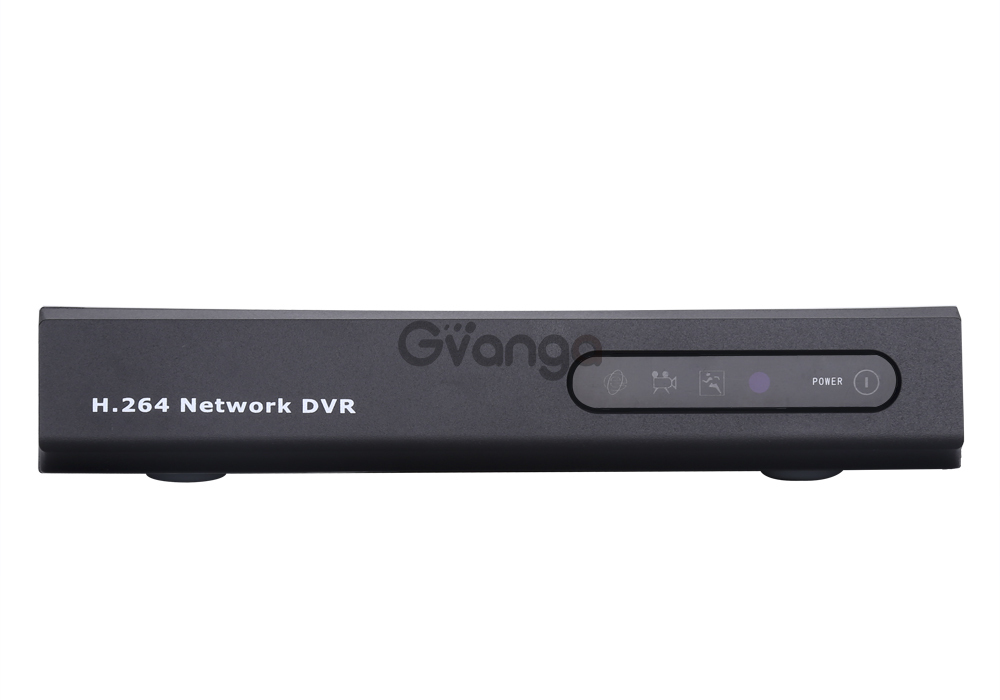

NVR Ports

• 1 SATA Hard Disk Drive Slot
• HDMI
• VGA
• LAN
• DV 12V
• 2x USB

Languages

• English, Chinese (simp), Chinese(trad), Russian, Japanese, Thai, French, Arab, German, Portuguese, Spanish, Korean, Persian, Vietnam

Dimensions

• NVR dimensions: 248 x 236 x 47 mm (L x W x D)
• NVR weight: 730g
• Camera dimensions: 155 x 73 x 65 mm (L x W x D)
• Camera weight: 334g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• 4 CH NVR
• 4x 720P Camera
• 4x Camera Wi-Fi Antenna
• 5x Power Adapter (4 Camera, 1 NVR)
• Network Cable
• USB Mouse
• User Manual
• 4x Camera Screw Sets
• Software CD
• 1x NVR Screw Set
